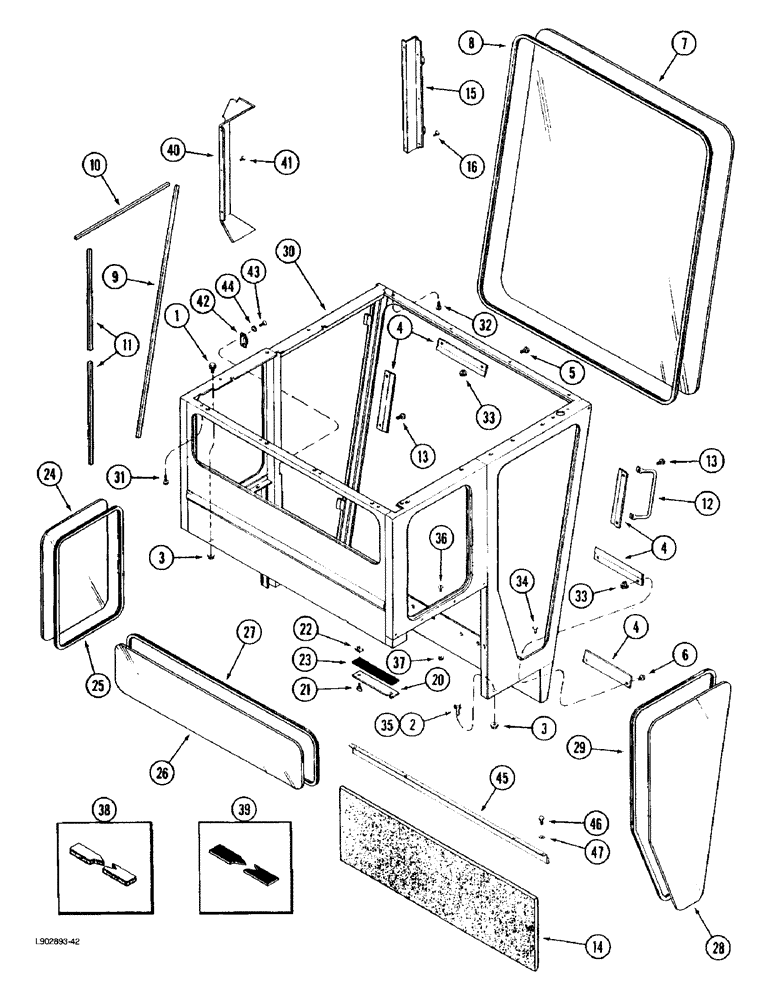

Запчасти Case IH 1670 (9G-18) - OPERATORS CAB (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators, with heater and air conditioning, Includes: Ref. 1 - 47

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

- hex flange, self-locking, 3/8 inch NC

18шт.

4

196742C3

LARGE PLATE

SUPPORT - windshield retainer

5шт.

5

113-191

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

Hex, 5/16"-18 x 3/4",G5, Full Thd

2шт.

6

113-198

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

6шт.

7

1957276C1

GLASS

- cab windshield (Replaces glass 198242C1)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch

1шт.

Order 198131C2 and cut to length.

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 54 inch

1шт.

Order 196707C1 and cut to length.

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch

1шт.

Order 196707C1 and cut to length.

1шт.

11

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear, 24 inch

1шт.

Order 196707C1 and cut to length.

1шт.

12

1321545C1

HANDLE

- grab

1шт.

13

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, grade 8

2шт.

14

1321286C3

LINING

PANEL - rear acoustical (Replaces panel 1321286C2)

1шт.

15

1987173C1

PANEL ASSY.

SUPPORT - filler, right-hand

1шт.

16

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

20

1301129C1

DOOR

- clean out

1шт.

21

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

- thumb, clean out door (Replaces thumb screw 377363R1)

2шт.

22

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

CLIP - palnut, 1/4 inch NC

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - seal, clean out door, 9-11/16 inch

1шт.

Order 1300025C1 and cut to length.

1шт.

24

198244C1

GLASS

- left-hand rear

1шт.

25

NSS

NOT SOLD SEPARAT

STRIP - seal, cab left rear glass, 87 inch

1шт.

Order 198131C2 and cut to length.

1шт.

26

198247C1

GLASS

- cab rear

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - seal, cab rear glass, 123 inch

1шт.

Order 198131C2 and cut to length.

1шт.

28

198184C1

GLASS

- cab, right-hand front

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - seal, right front glass, 130 inch

1шт.

Order 198131C2 and cut to length.

1шт.

30

NSS

NOT SOLD SEPARAT

CAB - operator, order cab assembly

1шт.

31

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self-tapping, special, 5/16 inch

10шт.

32

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self-tapping, special

4шт.

33

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

6шт.

34

1329797C1

PLUG

- tube, rubber

1шт.

35

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex washer head, special, 3/8 NC x 1-1/2 inch

2шт.

36

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

3шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

38

1301236C1

SEALING STRIP

- cab to deck, 31 inch (787 mm) long

1шт.

39

198600C2

SEALING STRIP

SEAL - cab to deck, 156 inch (3962 mm) long

1шт.

40

1276305C1

SUPPORT

- hose cover

1шт.

41

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/8 inch

6шт.

42

392801R3

LATCH

STRIKER - door catch

1шт.

43

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- machine, oval Phillips, 1/4 NC x 1/2 inch

2шт.

44

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - countersunk, external tooth lock, 1/4 inch

2шт.

45

1338051C1

BRACKET

- hold-down, front

1шт.

46

275-1478

SELF-TAP SCREW,1/4" - 14 x 1/2"

SCREW - hex, self-tapping, 1/4-14 x 1/2 inch

4шт.

47

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.
