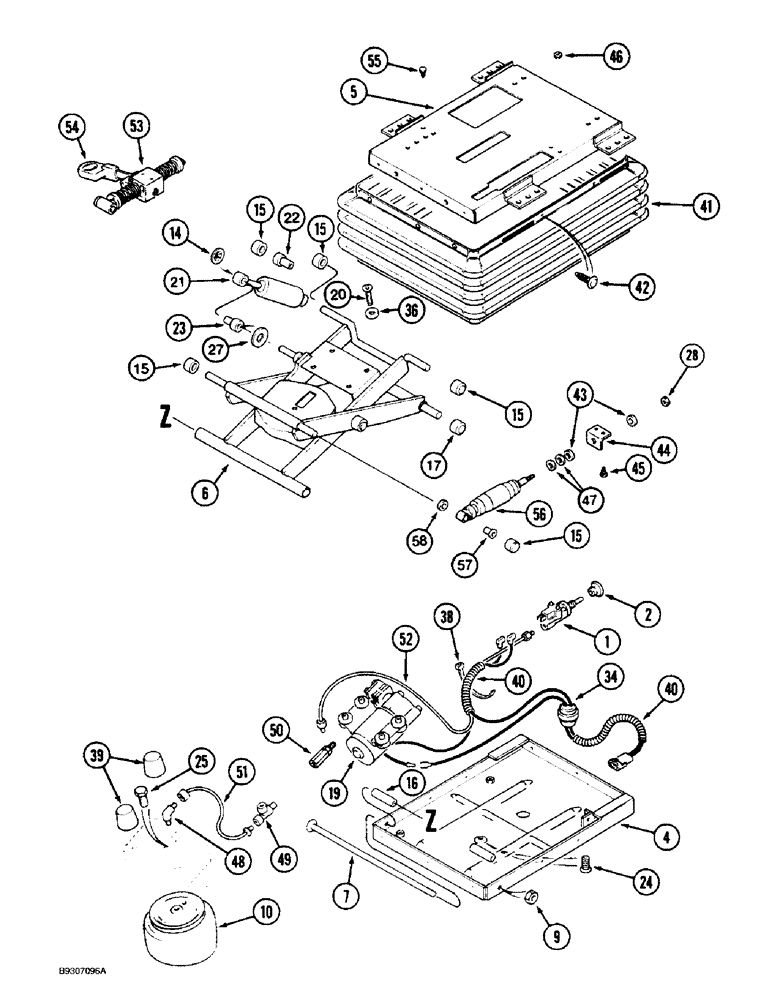

Запчасти Case IH 1670 (9G-17A) - AIR SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1990653C2

SEAT

ASSEMBLY - operators, also includes Refs. shown on figures 9G-17 and 9G-17D (Replaces seat assembly 1340184C1), Includes: Ref. 1 - 58

1шт.

1990648C1

PACKAGE

KIT - suspension service, Includes: Ref. 1 - 39

1шт.

1

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control, Includes: Ref. 2

1шт.

2

1987186C1

BUTTON

KNOB - switch

1шт.

Part of Knob Kit P/N 19999692C1

1шт.

4

1981834C1

HOUSING

- suspension, lower

1шт.

5

1990642C1

HOUSING

- upper, suspension

1шт.

6

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

7

A49529

SHAFT

- bearing tube

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

1981842C1

SPRING

- air

1шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

1990644C1

PACKAGE

KIT - bearing, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - suspension, with bearing

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - tube

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - suspension, without bearing

2шт.

19

1999947C2

COMPRESSOR

- air, Includes valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

20

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head cross recess, No. 8-32 x 3/8"

2шт.

1344250C1

SHOCK ABSORBER

KIT - shock absorber, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

ABSORBER - shock, seat

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - shock absorber

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - shock absorber

1шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- flat head cross recess, 3/8 NC x 3/4"

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

27

A45519

WASHER

- flat, plastic

1шт.

28

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

34

1981848C2

HARNESS

- wire

1шт.

36

495-31022

WASHER,#10

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

39

1981849C2

SHOCK ABSORBER

BUMPER - rubber

2шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, includes Ref. 2

1шт.

1990653C2

SEAT

ASSEMBLY - operators, also includes Refs. shown on figures 9G-16 and 9G-17A

1шт.

1990648C1

PACKAGE

KIT - suspension service, Includes: Ref. 40 - 42

1шт.

40

1343833C1

TUBE

TUBING - corrugated, 3/8 ID x 24 inch

2шт.

41

1990647C1

PACKAGE

KIT - boot, suspension, Includes: Ref. 42

1шт.

42

700709502

FASTENER

PIN - retaining

1шт.

43

A49679

BUSHING

- rubber

2шт.

44

1981845C1

ANGLE

- mounting

1шт.

45

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

46

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

1990548C1

PACKAGE

KIT - air line and fittings, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1шт.

49

NSS

NOT SOLD SEPARAT

TEE - 1/8 PT x 1/4 inch tube

1шт.

50

NSS

NOT SOLD SEPARAT

ADAPTER - straight, 1/8 PT x 1/4 inch tube

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 O.D. x 9-1/2 inch

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 O.D. x 28 inch

1шт.

53

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, Includes: Ref. 54

1шт.

54

NSS

NOT SOLD SEPARAT

KNOB - isolator control, fore and aft

1шт.

Part of Knob Kit P/N 19999692C1

1шт.

55

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, Hex Hd, 5/16" x 3/4"

2шт.

1990646C1

SHOCK ABSORBER

KIT - shock absorber, includes Ref. 43, 44, 56 and 57

1шт.

56

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

57

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

58

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, Includes: Ref. 2 and 54.

1шт.
