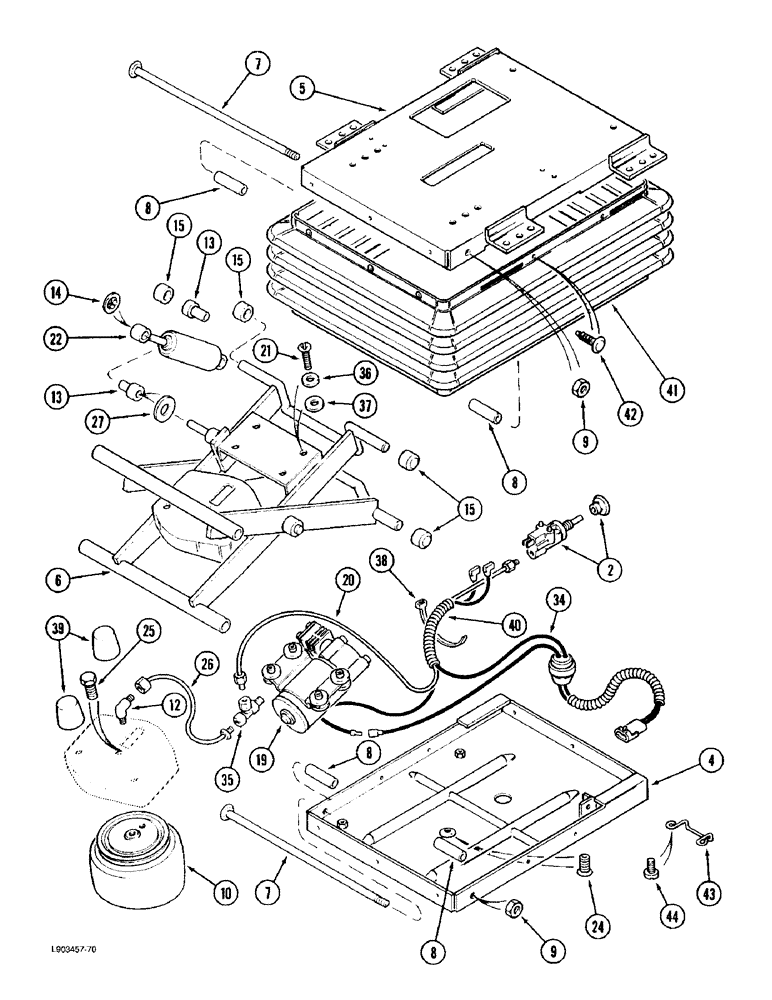

Запчасти Case IH 1670 (9G-15A) - AIR SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1340184C1

SEAT

ASSEMBLY - operators, Includes: Ref. 2 - 44

1шт.

1344002C1

SET OF PARTS

KIT - suspension service, Includes: Ref. 2 - 40

1шт.

2

1981852C2

IGNITION SWITCH

SWITCH - air control

1шт.

4

1981834C1

HOUSING

- lower

1шт.

5

1343996C1

HOUSING

- suspension

1шт.

6

1343997C1

ARM

- suspension

1шт.

7

A49529

SHAFT

- bushing tube

1шт.

8

A47760

BUSHING

TUBE - bearing

2шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

1981842C1

SPRING

- air

1шт.

12

1981865C1

UNION

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube

1шт.

13

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

15

1981788C1

SHIFTER ROLLER

ROLLER - suspension

6шт.

19

1981843C1

COMPRESSOR

- air

1шт.

20

1343946C1

TUBE

- nylon, 5/32 O.D. x 33 inch

1шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan Phillips, No. 8 NC x 3/8"

4шт.

22

1981795C1

SHOCK ABSORBER

ABSORBER - shock

1шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

26

1981853C1

PLASTIC-RUBBER TUBE,0.156" OD, 6" Length

AIR HOSE 152.00 mm - Nylon, 5/32 OD

1шт.

27

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

34

1981848C1

HARNESS

- wire

1шт.

35

1981864C1

UNION

ADAPTER - 1/8 PT x 5/32 inch tube

1шт.

36

495-31022

WASHER,#10

4шт.

37

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

39

1981849C1

SHOCK ABSORBER

BUMPER - rubber

2шт.

40

1343833C1

TUBE

GUARD - corrugated, 3/8 ID x 24 inch long

2шт.

41

1981786C1

KIT

- boot, suspension, Includes: Ref. 42

1шт.

42

1343837C1

SET OF PARTS

PIN - retaining, package of 24

1шт.

43

1344107C1

SUPPORT

BRACKET - beam switch

1шт.

44

187-1035

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head slotted, No. 10-16 x 1/2 inch

2шт.
