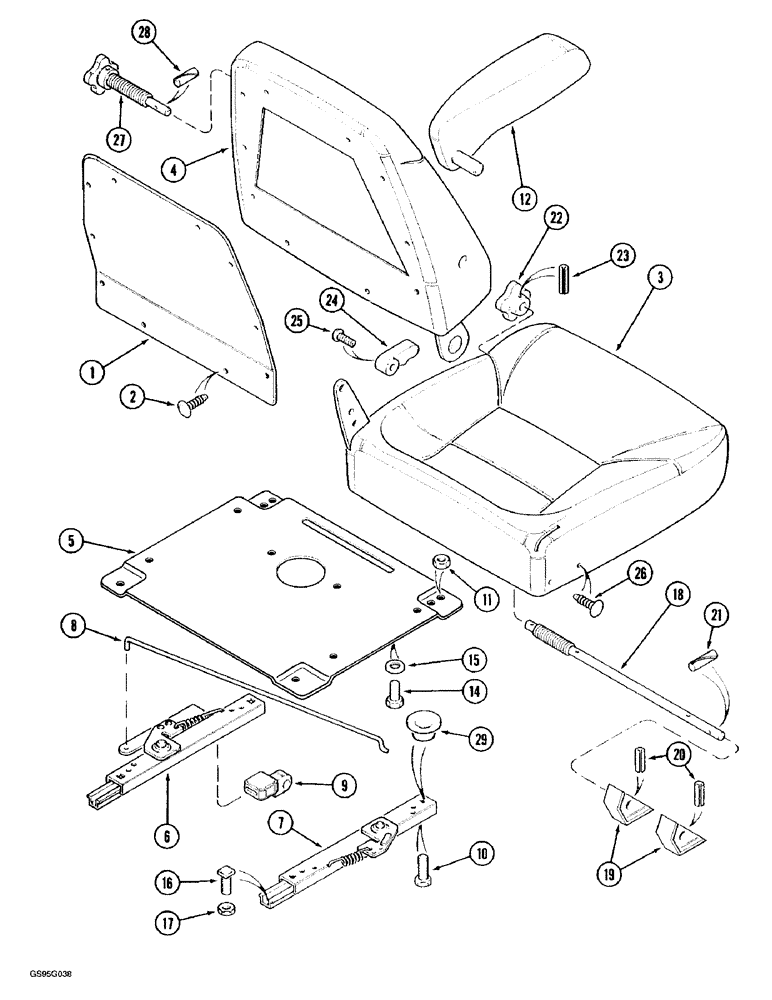

Запчасти Case IH 1670 (9G-14) - AIR SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1340184C1

SEAT

ASSEMBLY - operators, no longer used, for service order seat assembly 1990653C2, parts list figures 9G-17 - 9G-17D, Includes: Ref. 1 - 29

1шт.

1

1981820C2

PACKAGE, REPAIR

KIT - back cover service (Replaces kit 1981820C1), Includes: Ref. 2

1шт.

2

1999693C1

KIT

CLIP - christmas tree, package of 12

1шт.

3

1981815C2

CUSHION, SEAT

KIT - seat pad

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT - backrest pad

1шт.

5

182991A1

LARGE PLATE

PLATE - slide adapter (Replaces plate 1981817C1), Includes: Ref. 6 - 9

1шт.

1344248C1

SLIDE

KIT - double locking slide

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand, with handle

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - slide

1шт.

9

NSS

NOT SOLD SEPARAT

KNOB - fore/aft

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT - armrest, left-hand

1шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, grade 2

4шт.

17

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

1981813C3

PACKAGE, REPAIR

KIT - seat and backrest (Replaces kit 1981856C1), Includes: Ref. 18 - 28 and shaft assembly

1шт.

NSS

NOT SOLD SEPARAT

KIT - seat and backrest cushion, includes Ref. 1, 3, and 4, shown above

1шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - seat tilt

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT - narrow

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

20

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x 1 inch

2шт.

21

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB - seat tilt

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x 1 inch

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - backrest tilt

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm

1шт.

26

1999693C1

KIT

CLIP - christmas tree, package of 12

1шт.

27

NSS

NOT SOLD SEPARAT

KNOB - control, lumbar

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 1-1/8 inch

1шт.

29

700711545

CUP WASHER

SPACER - slide cup (Replaces spacer S115782)

4шт.
