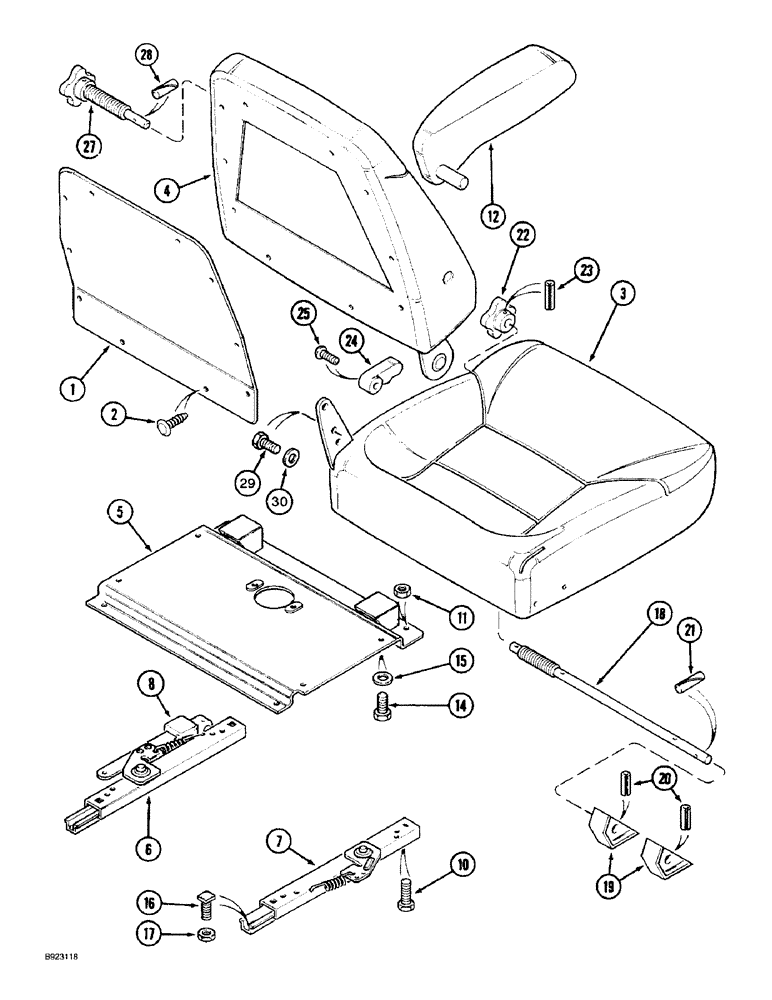

Запчасти Case IH 1670 (9G-11A) - MECHANICAL SUSPENSION SEAT, CUSHIONS AND SLIDES (10) - CAB & AIR CONDITIONING

1990651C2

SEAT

ASSEMBLY - mechanical suspension, also includes Refs. on figures 9G-12 and 9G-13A, Includes: Ref. 1 - 31

1шт.

1

1981820C2

PACKAGE, REPAIR

KIT - back cover service, Includes: Ref. 2

1шт.

2

1999693C1

KIT

CLIP - christmas tree (Package of 12)

1шт.

3

700712452

CUSHION, SEAT

CUSHION - seat

1шт.

3

1981815C2

CUSHION, SEAT

KIT - seat cushion

1шт.

4

127369A1

BACKREST COVER

CUSHION - backrest

1шт.

4

1981816C2

PACKAGE,SERVICE

KIT - backrest cushion

1шт.

5

1999781C1

SEAT SUPPORT

PLATE - slide adapter

1шт.

1344248C1

SLIDE

KIT - double locking slide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - locking, with handle, left-hand

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB - fore/aft

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

9

NSS

NOT SOLD SEPARAT

WIRE - slide latch, not shown

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

11

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

12

1981818C1

ARMREST

KIT - arm rest, left-hand

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

117-101

BOLT

BOLT - square head 5/16 x 3/4 inch

4шт.

1981813C3

PACKAGE, REPAIR

KIT - seat and backrest, Includes: Ref. 18 - 25, and seat shaft

1шт.

NSS

NOT SOLD SEPARAT

KIT - seat and backrest cushion, includes Ref. 1, 3, and 4, shown above, Includes: Ref. 18 - 20 and seat shaft

1шт.

1343826C2

SHAFT ASSY.

SHAFT - seat, narrow

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

20

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x i inch

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - spiral

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB - seat tilt

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x 1 inch

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - seat, backrest tilt

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

27

1999691C1

PACKAGE,SERVICE

KNOB - lumbar

1шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - roll, 5/32 x 1 inch

2шт.

Part of Seat Top Knob Kit P/N 1999691C1

1шт.

29

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

31

1999779C1

STRIPPER PACKAGE

KIT - christmas tree, backrest (Package of 4), not shown

1шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, seat top, Includes: Ref. 8 and 22 - 28

1шт.
