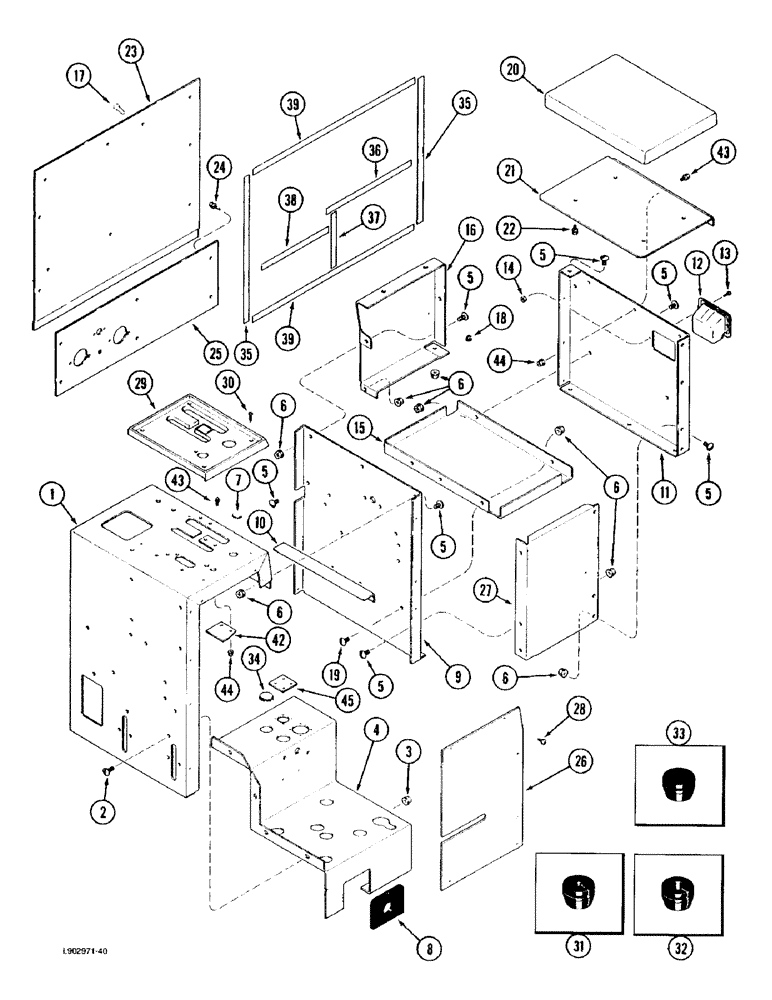

Запчасти Case IH 1670 (9G-06) - LEFT HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

193065C8

COVER

SUPPORT - left-hand console, rear

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

1321719C3

SUPPORT

- left-hand console, lower (Replaces support 1321719C2)

1шт.

5

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

7

198820C1

GROMMET

- lower console support

8шт.

8

1327577C2

GROMMET

SEAL - harness opening, rounded corners, if used

1шт.

8

1345009C1

GROMMET

SEAL - harness opening, squared corners, if used

1шт.

9

1324177C2

PLATE

SUPPORT - manual box, rear

1шт.

10

1329877C1

ANGLE

- cover support, rear, if equipped

1шт.

11

1979493C2

SUPPORT

- manual box

1шт.

12

A165449

ASH TRAY

TRAY - ash

1шт.

13

489-1108

SCREW,Cross Oval Hd, #10"-32 x 1/2"

- machine, oval Phillips, No. 10 NF x 1/2 inch

2шт.

14

225-13210

NUT,#10-32

2шт.

15

1324176C1

PLATE

SUPPORT - manual box, lower

1шт.

16

91878C3

SUPPORT

- manual box cover (Replaces support 91878C2)

1шт.

17

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

20

98129C2

PANEL

- trim, grey

1шт.

21

1329876C1

PLATE

COVER - manual box

1шт.

22

1330155C1

BOLT,Hex Flg, 1/4" - 20 x 1/2"

- self-locking, hex flange, special, 1/4 NC x 1/2 inch

4шт.

1330157C1

FLANGE NUT

- self-locking, hex flange, special, 1/4 inch NC

4шт.

23

1327958C3

PLATE - left-hand console outer cover (Replaces plate 1327958C1)

1шт.

24

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

16шт.

25

1283280C2

SUPPORT

- connector panel

1шт.

26

91776C2

PLATE

- left-hand inner console

1шт.

27

1979493C2

SUPPORT

- manual box, right-hand side (Replaces support 1324175C2)

1шт.

28

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch, polyseal

7шт.

29

1285417C2

COVER

- left-hand console (Replaces cover 1285417C1)

1шт.

30

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

31

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 ID

1шт.

32

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/4 inch ID

2шт.

33

198820C1

GROMMET

- plug, lower console support

1шт.

34

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - 1-1/4 inch ID

1шт.

35

1330168C1

SEAL - console cover, 18 inch, cut from 195917C1 bulk seal, see below

1шт.

36

1330171C1

SEAL - console cover, 14 inch, cut from 195917C1 bulk seal, see below

1шт.

37

1330167C1

SEAL - console cover, 4 inch, cut from 195917C1 bulk seal, see below

1шт.

38

1330169C1

SEAL

- console cover, 10 inch, cut from 195917C1 bulk seal, see below

1шт.

39

187786C1

SEALING STRIP

SEAL - console cover, 23 inch, cut from 195917C1 bulk seal, see below

1шт.

42

195239C2

BAR

- H pattern filler plate

1шт.

43

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

2шт.

44

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

45

1330179C1

PLATE

- cover

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
