(9G-04) - RIGHT HAND CONSOLE, (CONT)

Запчасти Case IH 1670 (9G-04) - RIGHT HAND CONSOLE, (CONT) (10) - CAB & AIR CONDITIONING

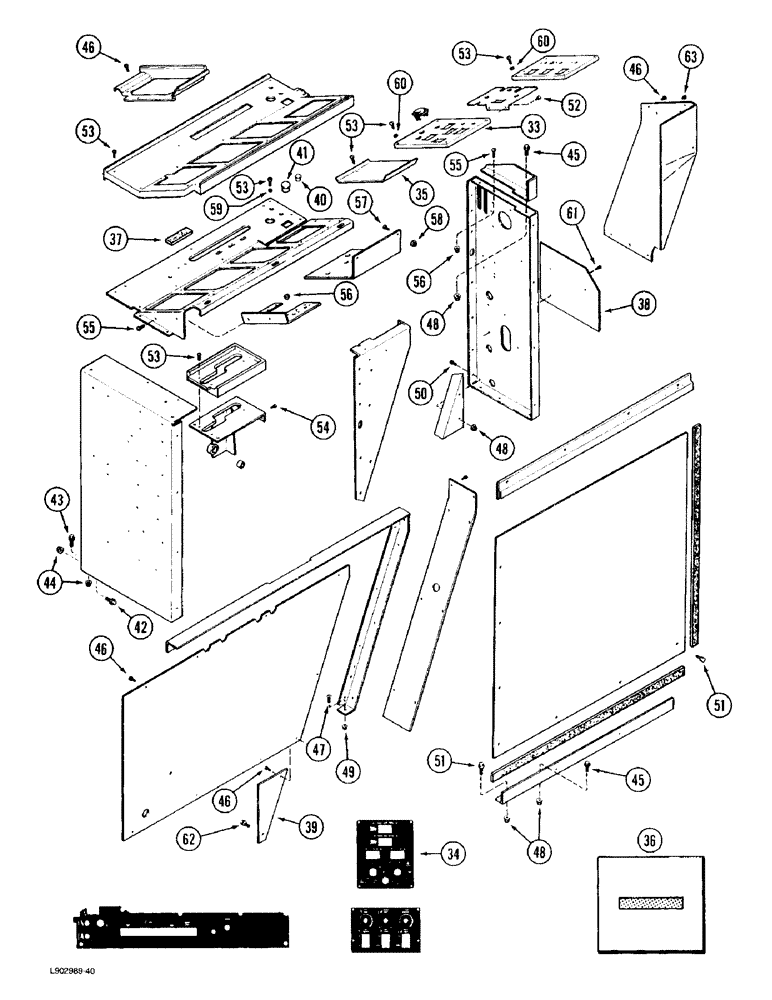

Схема запчастей Case IH 1670 - (9G-04) - RIGHT HAND CONSOLE, (CONT) (10) - CAB & AIR CONDITIONING
48
46
62
38
46
53
50
54
55
33
63
52
55
36
53
53
34
60
57
61
39
46
51
53
45
40
48
49
35
51
48
37
58
45
60
42
59
53
43
56
46
41
47
56
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

1276211C1

PANEL

- machine control, continued from 9G-2

1шт.

34

1280167C2

DECAL

- control panel, English

1шт.

34

1957290C1

DECAL

- control panel, French

1шт.

34

1957291C1

DECAL

- control panel, German

1шт.

34

1957292C1

DECAL

- control panel, Spanish

1шт.

35

187573C1

COVER

- fuse panel

1шт.

36

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - right-hand console cover, 3 inch

2шт.

38

1327985C1

PLATE

- hole cover, right-hand front

1шт.

39

91705C1

PLATE

BAR - right-hand lower console

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

41

183617C1

PLUG

- right-hand console

1шт.

42

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

11шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch, polyseal

34шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

49

1254276C1

PUSH-ON NUT

- push-on type, 5/16 inch

1шт.

50

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

2шт.

50

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

2шт.

51

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

10шт.

53

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

15шт.

54

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch (Replaces bolt 27128R1)

4шт.

55

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

3шт.

56

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

57

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

4шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

59

24853R1

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

WASHER - flat, 11/32 x 1 x 7/64 inch

3шт.

60

1270762C1

SELF-TAP SCREW

- pan head special

4шт.

61

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch (Replaces bolt 27128R1)

3шт.

62

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

BOLT - self-tapping, hex washer head, 5/16 NC x 1 inch (Replaces bolt 27569R1)

1шт.

63

353-403

PLUG,Dome, .437" hole, Nylon

3шт.
