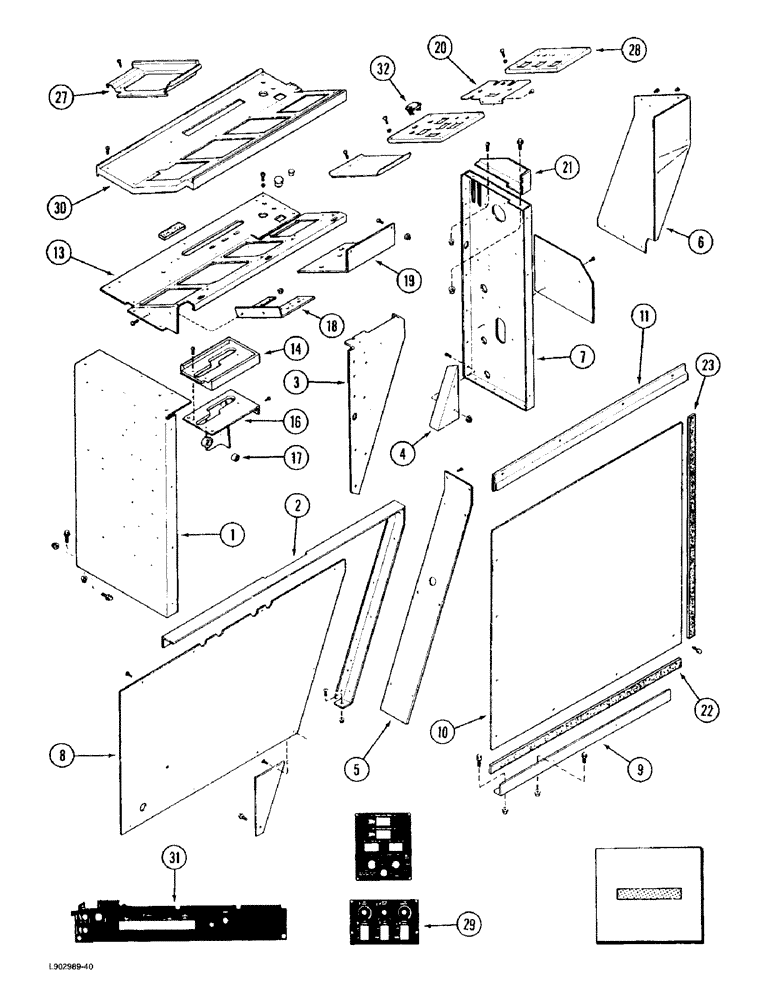

Запчасти Case IH 1670 (9G-02) - RIGHT HAND CONSOLE (10) - CAB & AIR CONDITIONING

1

1321966C3

SUPPORT

SUPPORT - right-hand console, rear (Replaces support 1321966C1)

1шт.

2

193031C3

SUPPORT

FRAME - right-hand console, front

1шт.

3

195992C2

SUPPORT

SUPPORT - console extension, right-hand

1шт.

4

195991C1

SUPPORT

SUPPORT - console extension, lower

1шт.

5

1317106C1

SUPPORT

SUPPORT - console extension, front

1шт.

6

1283101C2

SUPPORT

SUPPORT - console extension, lower front

1шт.

7

1987556C2

COVER

SUPPORT - console, front (Replaces support 193064C9)

1шт.

8

91704C3

LARGE PLATE

PLATE, LARGE PLATE - right-hand console, inner (Replaces plate 91704C1)

1шт.

9

193033C2

ANGLE

ANGLE - right-hand console, lower outer

1шт.

10

1301218C2

COVER

PLATE - right-hand console, outer

1шт.

11

1301334C1

SUPPORT

SUPPORT - outer cover, right-hand

1шт.

13

1301210C6

SUPPORT

SUPPORT - upper console, right-hand

1шт.

14

198988C1

COVER

COVER - hydrostatic drive support

1шт.

16

193277C91

SUPPORT ASSY.

SUPPORT - hydrostatic drive

1шт.

17

165704C1

BUSHING

BUSHING - tightener lever

1шт.

18

1280162C3

SUPPORT

SUPPORT - fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - rear lamp machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - rear lamp front control

1шт.

21

1327501C1

SUPPORT

SUPPORT - front panel

1шт.

22

1301228C1

STRIP

STRIP - right-hand console cover, 26-45/64 inch, cut from 195917C1 bulk seal, see item 36, page 9G-5

2шт.

23

187788C1

SEALING STRIP

STRIP - right-hand console cover, 27 inch, cut from 195917C1 bulk seal, see item 36, page 9G-5

2шт.

27

1280125C1

FRAME

FRAME - control panel, front

1шт.

28

1280158C2

PANEL

PANEL - control, front

1шт.

29

1280159C1

DECAL

DECAL - header control panel

1шт.

30

87366C1

COVER

COVER - instrument panel

1шт.

31

1327827C2

DECAL

DECAL - right-hand console

1шт.

32

245334C1

PLUG

PLUG - panel switch cover

5шт.
