Запчасти Case IH 1670 (8-86) - CYLINDER COUNTERBALANCE VALVE (07) - HYDRAULICS

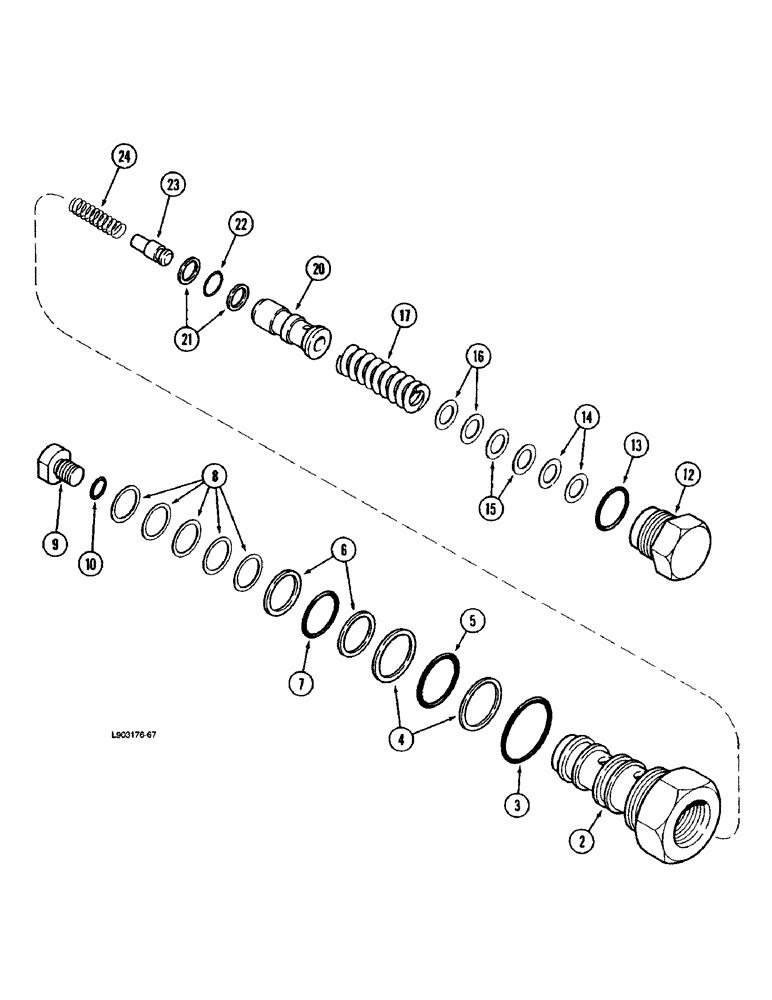

Схема запчастей Case IH 1670 - (8-86) - CYLINDER COUNTERBALANCE VALVE (07) - HYDRAULICS
13
16
9
23
20
24
2
4
12
21
15
8
17
22
10
6
5
14
7
3

Артикул

Название

Примечание

Количество

1304230C1

VALVE

ASSEMBLY - cylinder counterbalance, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order 1304230C1)

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve body

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM - retainer

5шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - counterbalance valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - valve retainer

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - counterbalance valve

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve cap

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

14

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

14

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

15

NSS

NOT SOLD SEPARAT

SHIM - spool

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - spool

1шт.

Part of Seal Repair Kit P/N 93282C1

1шт.

23

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

93282C1

SEAL KIT

- seal repair, Includes: Ref. 3-7, 10, 13, 21 and 22

1шт.
