Запчасти Case IH 1670 (8-84) - LEVELING CYLINDER (07) - HYDRAULICS

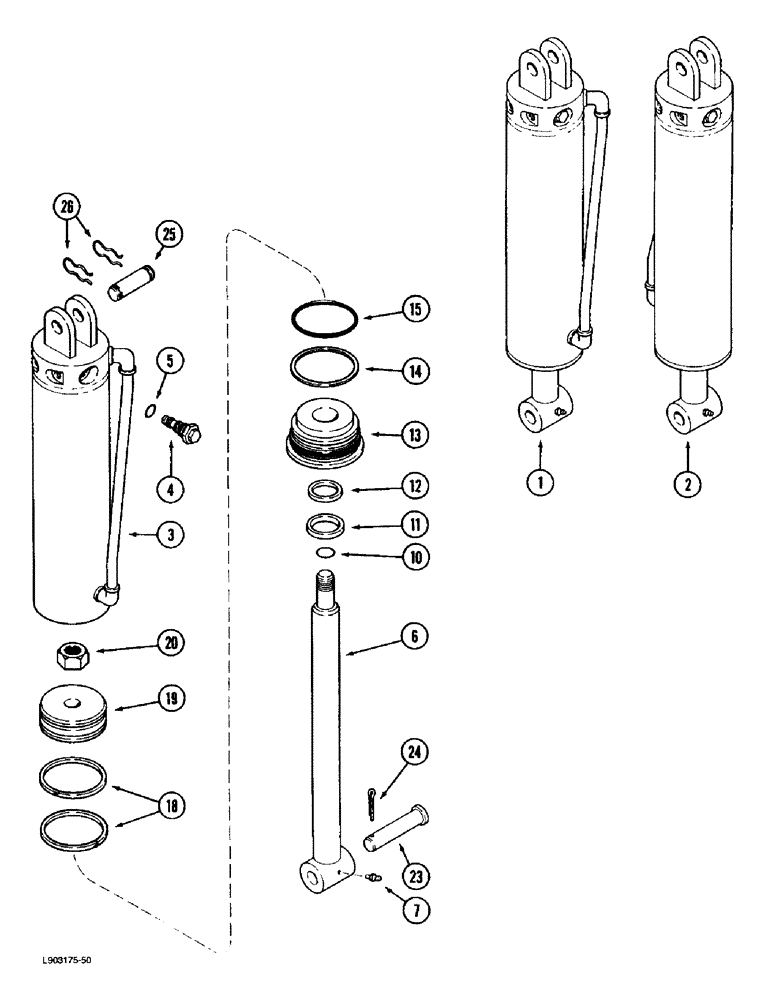

Схема запчастей Case IH 1670 - (8-84) - LEVELING CYLINDER (07) - HYDRAULICS
19
1
2
13
3
7
26
15
23
5
11
10
4
6
12
14
18
20
25
24

Артикул

Название

Примечание

Количество

1

304218C92

CYLINDER ASSEMBLY - leveling, left-hand, Includes: Ref. 3 - 20

1шт.

2

1304219C92

CYLINDER

ASSEMBLY - leveling, right-hand, Includes: Ref. 3 - 20

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - cylinder (Order assembly)

1шт.

4

1304230C1

VALVE

ASSEMBLY - cylinder counterbalance, parts list figure 8-86

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

1304782C1

ROD ASSY.

ROD - cylinder piston

1шт.

7

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

13

1304783C1

END

HEAD - cylinder

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston oil

2шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

19

1304784C1

PISTON

- cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - piston retaining

1шт.

Part of Seal Repair Kit P/N 1304224C3

1шт.

23

1304582C2

PIN

- cylinder rod retaining

2шт.

24

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

25

1304196C1

PIN

- cylinder retaining

2шт.

26

1304197C1

PIN

- retaining spring

4шт.

1304224C3

SEAL KIT

- seal repair, Includes: Ref. 10 - 12, 14 - 18 and 20

1шт.

Выбрано товаров: 28
