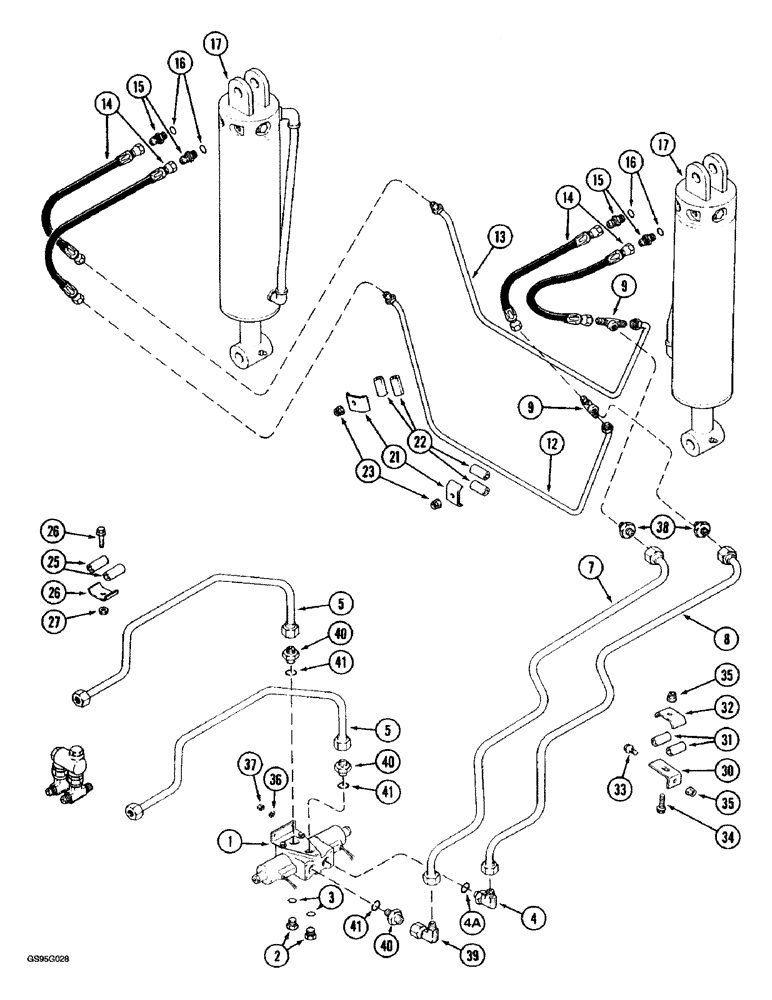

Запчасти Case IH 1670 (8-82) - LEVELING SYSTEM, VALVE TO CYLINDER (07) - HYDRAULICS

1

1304982C93

VALVE

ASSEMBLY - leveling, parts list figure 8-88, Includes coil and kit

1шт.

1282274C1

COIL ASSY.

COIL - leveling valve

1шт.

1282273C1

SEAL,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

KIT - valve seal repair

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 1-1/16-12 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 4A

1шт.

4a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

5

1331376C1

TUBE

- hydraulic pressure

2шт.

7

1331372C1

TUBE

- hydraulic pressure

1шт.

8

1331371C1

TUBE

- hydraulic pressure

1шт.

9

218-585

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Fem Br

- 1/2 female PT branch x 3/4-16 inch flare

2шт.

12

1304815C1

TUBE ASSY.

TUBE - pressure crossover, lower

1шт.

13

1304814C1

TUBE ASSY.

TUBE - pressure crossover, upper

1шт.

14

31-2974

HOSE

- lock valve to steering cylinder, 29 inch

4шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 16

4шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - leveling, parts list figure 8-84

2шт.

21

165601C1

CLAMP

- reservoir drain tube

2шт.

22

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

165601C1

CLAMP

- reservoir drain tube

1шт.

25

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

2шт.

26

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

(Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

30

187833C1

SUPPORT

- suction return tubes

1шт.

31

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

2шт.

32

165601C1

CLAMP

- reservoir drain tube

1шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

34

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

(Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

1шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

38

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 1/2 inch PT

2шт.

39

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

40

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss, Includes: Ref. 41

3шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
