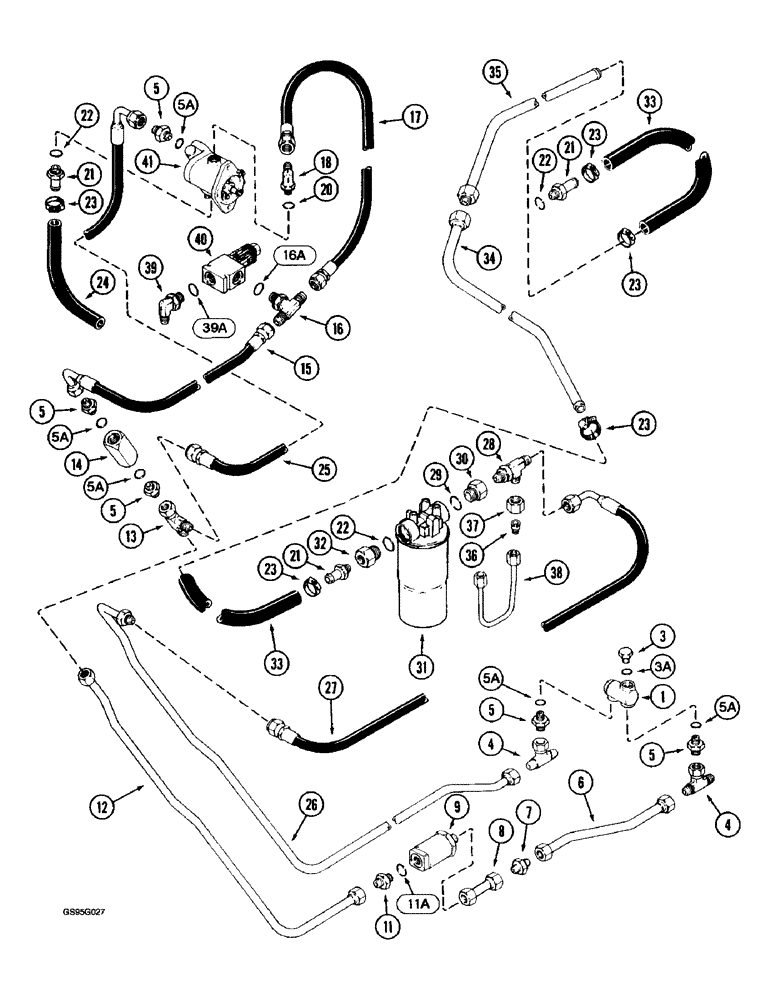

Запчасти Case IH 1670 (8-80) - LEVELING SYSTEM, PUMP AND FILTER (07) - HYDRAULICS

1

852984C91

VALVE

ASSEMBLY - relief, Includes valve and kit

1шт.

852986C1

VALVE

- relief

1шт.

852988C1

SEAL KIT

- seal repair

1шт.

3

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3A Hex Hd, 3/4"-16 ORB

1шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 inch swivel branch x flare x flare

2шт.

5

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss, Includes: Ref. 5A

5шт.

5a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

5шт.

6

1331377C1

TUBE

- leveling pressure

1шт.

7

218-853

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch flare

1шт.

8

1310837C1

TUBE ASSY.,0.8" OD, 89 mm Length

TUBE - adapter

1шт.

9

1346360C1

SCREEN

- strainer

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 11A

1шт.

11a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

1331378C1

TUBE

- leveling pressure

1шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

1шт.

14

1304235C1

VALVE

- check

1шт.

15

1331381C1

HOSE

- bypass

1шт.

16

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare x flare, Includes: Ref. 16A

1шт.

16a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

1331380C1

HOSE

- leveling high speed

1шт.

18

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

ADAPTER - straight, 1 stem end x 1-5/16-12 inch O-ring boss

3шт.

22

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

O-RING - 1-11/64 ID x 7/64 inch wide

3шт.

23

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

24

1331385C1

HOSE

- leveling pump suction

1шт.

25

1331379C1

HOSE

- leveling slow speed

1шт.

26

1331375C1

TUBE

- leveling return

1шт.

27

1331382C1

HOSE

- leveling return

1шт.

28

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 29

1шт.

29

218-5315

HYD CONNECTOR

O-RING - 1-15/32 ID x 1/8 inch wide

1шт.

30

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

ADAPTER - 1-1/4 x 3/4 inch straight thread

1шт.

31

REF

INSTRUCTION

FILTER ASSEMBLY - header and reel drive, parts list figure 8-78

1шт.

32

218-5263

REDUCER

- 1-1/4 inch straight

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - return, 930 mm long, cut from B90928 bulk hose, see below

2шт.

34

1331352C1

HYD TUBE

TUBE - leveling return

1шт.

35

1331351C1

TUBE

- leveling return

1шт.

36

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing, 3/4 tube O.D. x 3/4-16 inch flare

1шт.

37

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF

1шт.

38

1331354C1

TUBE

- leveling bypass return

1шт.

39

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 39A

1шт.

39a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

1346051C1

VALVE

- leveling bypass

1шт.

41

1343676C1

PUMP

ASSEMBLY - leveling, parts list figure 8-78

1шт.

B90928

HOSE,25.40 mm ID, SAE 16, SAE 30R2

Bulk, 50 Foot Roll 25.40 mm ID, SAE 16, SAE 30R2

1шт.
