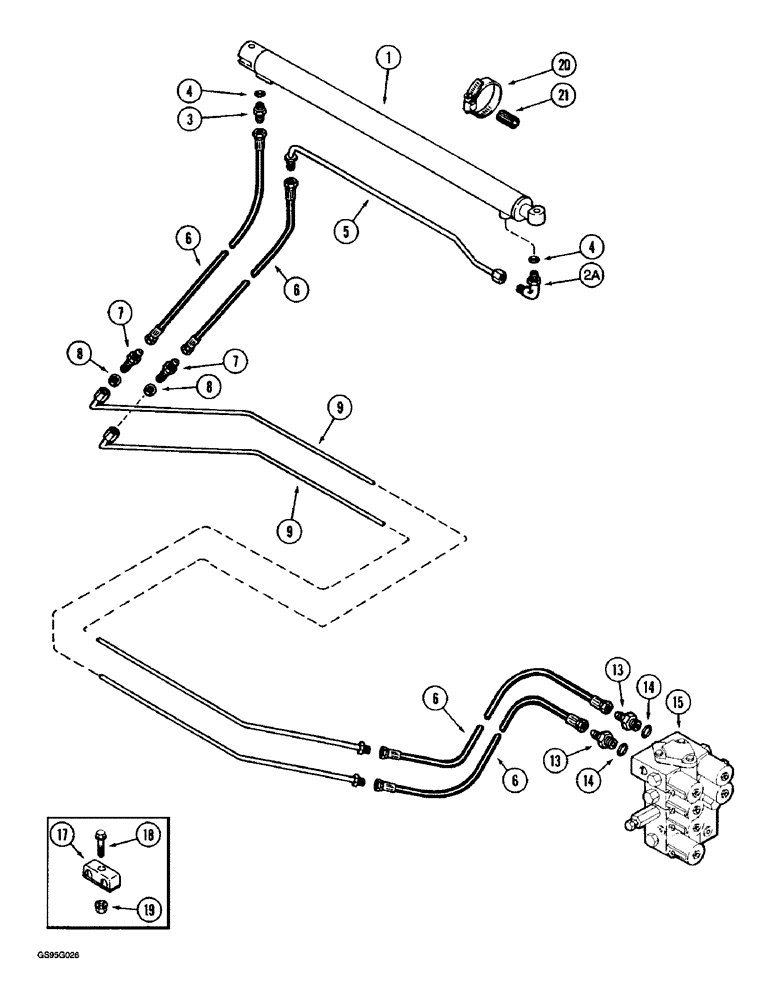

Запчасти Case IH 1670 (8-74) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

CYLINDER ASSEMBLY - unloader swing, parts list figure 8-76

1шт.

1282488C92R

REMAN-HYD CYLINDER

1670 S/N JJC0080540 & After (8/90-)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj. O-ring boss, Includes: Ref. 2A

1шт.

2a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE - unloader swing cylinder

1шт.

6

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

4шт.

7

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

2шт.

8

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - bulkhead hex, 7/16 inch NF

2шт.

9

196751C1

UNLOADING TUBE

TUBE - unloader swing cylinder

2шт.

13

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss (Replaces connector 629349R1), Includes: Ref. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figures 8-30 or 8-32

1шт.

17

183824C1

CLAMP

- unloader swing tube

2шт.

18

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

20

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - adj. 1-9/16 - 2-1/2 inch diameter

1шт.

21

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.
