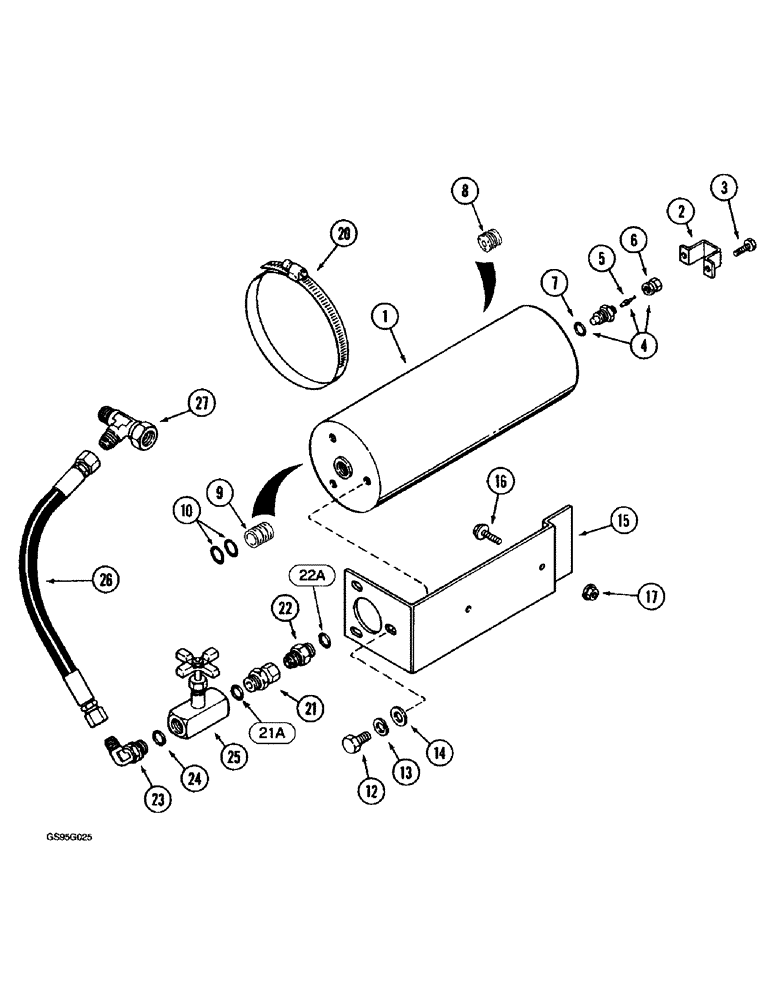

Запчасти Case IH 1670 (8-72) - ACCUMULATOR (07) - HYDRAULICS

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic, with welded ends, no longer available, order accumulator assembly 128191A1, Includes: Ref. 1 - 10

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - hydraulic, with threaded ends (Replaces accumulator assembly 1978111C1), Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator

1шт.

2

1341920C1

PROTECTOR

GUARD - valve

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping, hex head, 3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

ASSEMBLY - charge, Includes: Ref. 5 - 7 and accumulator changing valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE - accumulator changing

1шт.

5

1978143C1

PISTON

CORE - valve

1шт.

6

1978144C1

CAP

- valve

1шт.

7

1978158C1

O-RING

- valve

1шт.

1341919C1

SEAL KIT

KIT - seal

1шт.

8

S301363

GLAND

- accumulator

1шт.

9

S301364

PISTON

- accumulator

1шт.

10

S301365

RING

- wear, Teflon, piston

2шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex 1/2 NF x 3/4 inch

3шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

3шт.

15

1979278C2

SUPPORT

- accumulator (Replaces support 1979278C1)

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, , Adj. #80, 4.62/5.50 Type F Worm

1шт.

21

1327736C1

ELBOW

ADAPTER - straight, special, female x O-ring boss, Includes: Ref. 21A

1шт.

21a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 22A

1шт.

22a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

183510C1

VALVE

- needle

1шт.

26

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Pressure, Replaces 156436H1 12.70 mm ID x 508.00 mm, SAE 100R1

1шт.

27

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.
