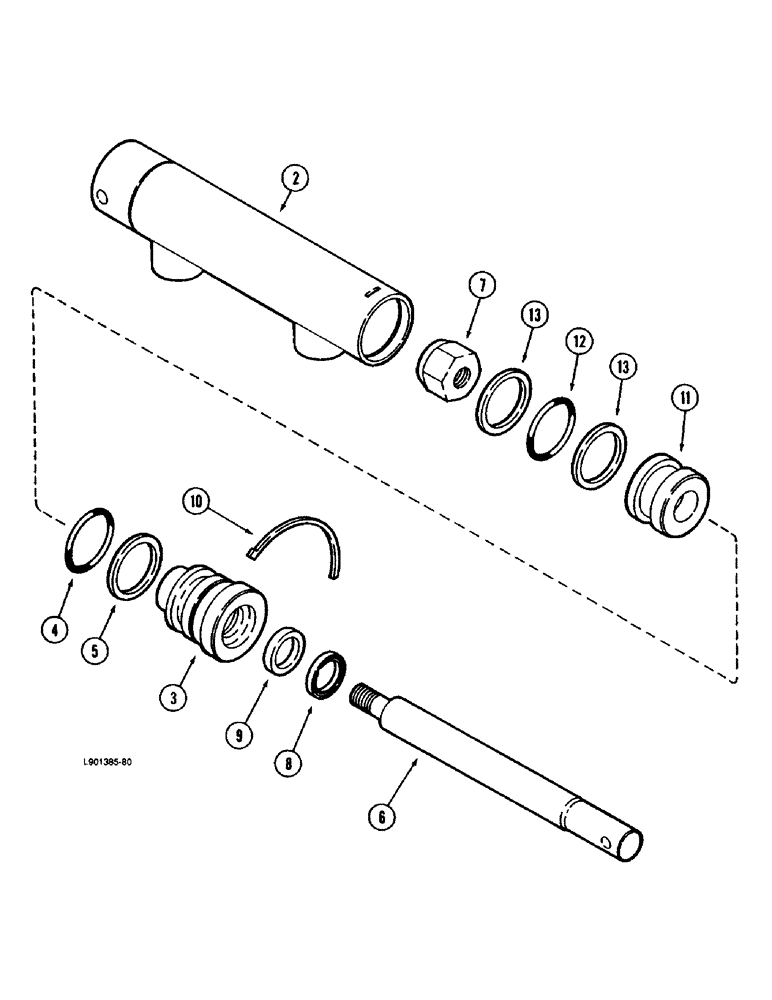

Запчасти Case IH 1670 (8-70) - SEPARATOR CLUTCH CYLINDER (07) - HYDRAULICS

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - separator clutch, Includes: Ref. 2 - 13

1шт.

Part number stamped on part.

1шт.

133408C92

CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke

ASSEMBLY - separator clutch, 2 (51) ID x 12-1/2 inch 318 mm) stroke, Includes: Ref. 2 - 13

1шт.

Part number stamped on part.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order assembly)

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of Seal Kit P/N 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

Part of Seal Kit P/N 63884C92

1шт.

6

1979793C1

PISTON ROD

ROD - piston, used with cylinder assembly 1346042C1

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder, used with cylinder assembly 133408C92

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal

1шт.

Part of Seal Kit P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

Part of Seal Kit P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of Seal Kit P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of Seal Kit P/N 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

2шт.

Part of Seal Kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 8-10, 12 and 13

1шт.
