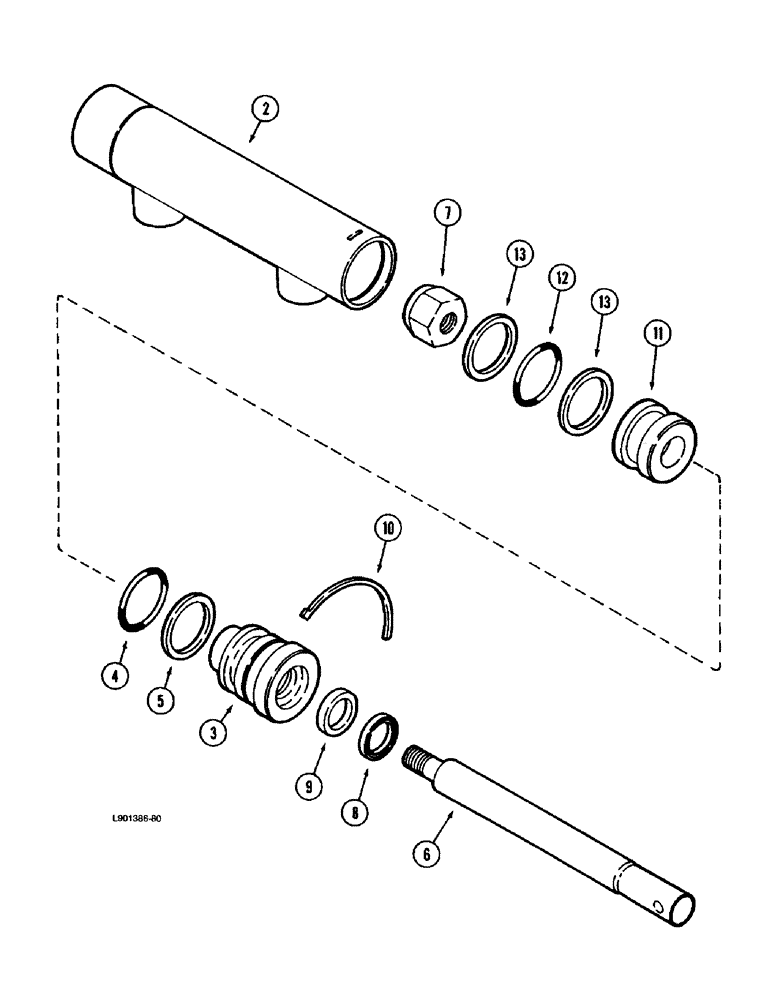

Запчасти Case IH 1670 (8-68) - FEEDER CLUTCH CYLINDER (07) - HYDRAULICS

133405C92

CYLINDER

ASSEMBLY - hydraulic, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, Includes: Ref. 2 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), P.I.N. JJC0080540 AND AFTER, Assembly hydraulic, 2 (51) ID x 2-1/2 inch (63.5 mm) stroke (8/90-), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 133405C92)

1шт.

3

108641C1

GLAND

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of Seal Kit P/N 63884C92

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

Part of Seal Kit P/N 63884C92

1шт.

6

108639C1

PISTON ROD

ROD - piston, cylinder

1шт.

7

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal

1шт.

Part of Seal Kit P/N 63884C92

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

Part of Seal Kit P/N 63884C92

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

Part of Seal Kit P/N 63884C92

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch

1шт.

Part of Seal Kit P/N 63884C92

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

2шт.

Part of Seal Kit P/N 63884C92

1шт.

63884C92

SEAL KIT

KIT - seal, Includes: Ref. 4, 5, 8-10, 12 and 13

1шт.
