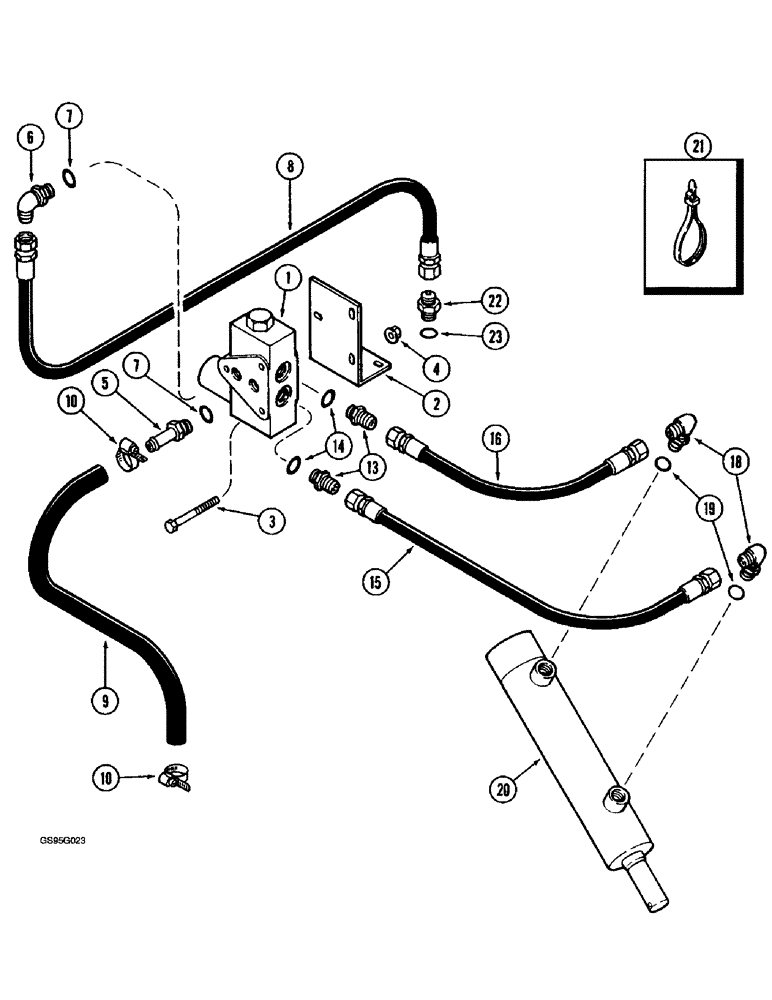

Запчасти Case IH 1670 (8-60) - SEPARATOR CLUTCH SYSTEM, CONTROL CONCEPTS (07) - HYDRAULICS

1

1301171C91

VALVE

ASSEMBLY - separator clutch, parts list figure 8-66

1шт.

2

1301037C1

ANGLE

BRACKET - mounting, separator clutch valve

1шт.

3

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

5

178036C1

CONNECTOR, ELEC

ADAPTER - straight, special, 3/8 inch barb end x 9/16 inch PT

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 7

1шт.

8

1285380C2

HYDRAULIC HOSE

HOSE - separator clutch, 3/8 ID x 50 inch

1шт.

9

187619C2

HOSE

- separator clutch return, 22 inch long, cut from S118400X bulk hose, see below

1шт.

10

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch diameter

2шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 14

2шт.

15

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Feeder clutch 9.52 mm ID x 535.00 mm

1шт.

16

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE - separator clutch, 17 inch (432 mm) long

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 19

2шт.

20

1346042C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, separator clutch, parts list figure 8-70

1шт.

21

702093C1

CABLE TIE

STRAP - tie, self-locking, black

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) ID x 5/8 inch (15 mm) O.D. x 25 foot long

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
