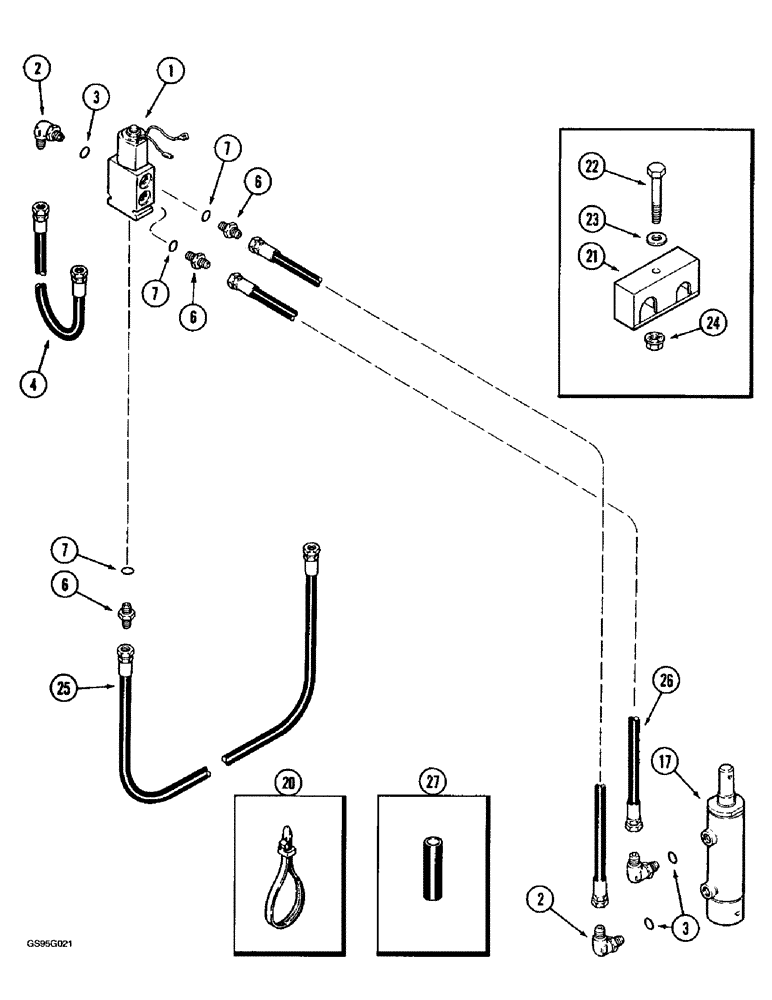

Запчасти Case IH 1670 (8-56) - 187505C91 FEEDER CLUTCH VALVE SYSTEM, MODULAR CONTROL (07) - HYDRAULICS

1

187505C91

VALVE

ASSEMBLY - feeder and separator clutch, parts list figure 8-64

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 3

3шт.

4

632455R91

HOSE

- feeder clutch, 14 inch

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 7

1шт.

17

133405C92

CYLINDER

ASSEMBLY - hydraulic, feeder clutch, parts list figure 8-68

1шт.

17

87337239R

REMAN-HYD CYLINDER

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), P.I.N. JJC0080540 AND AFTER, Assembly hydraulic, Feeder clutch (8/90-), Reman for New PN 133405C92

1шт.

17

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

20

702093C1

CABLE TIE

STRAP - tie, self-locking, black

1шт.

21

183825C1

CLAMP

- tube retaining

4шт.

22

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

4шт.

23

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

4шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

25

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

- Feeder clutch 9.52 mm ID x 535.00 mm

1шт.

26

1277718C1

HYDRAULIC HOSE,6.35 mm ID x 3050.00 mm

6.35 mm ID x 3050.00 mm

2шт.

27

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
