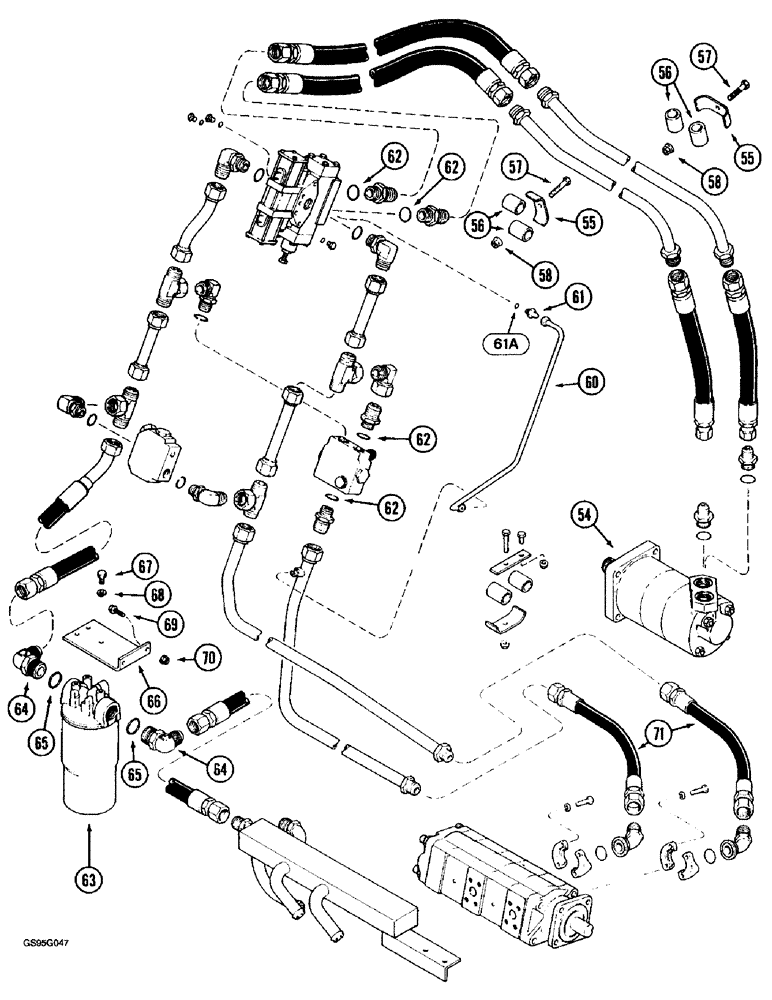

Запчасти Case IH 1670 (8-54) - HEADER AND REEL DRIVE, SELECTOR VALVE SYSTEM, (CONT) (07) - HYDRAULICS

54

1310797C91

MOTOR

ASSEMBLY - header drive, Includes kits, continued from 8-52

1шт.

1301932C2

SEAL KIT

- shaft seal repair

1шт.

1301933C2

PACKAGE

KIT - seal repair

1шт.

55

1304932C1

CLAMP

- retaining

2шт.

56

187935C1

STRIP

SLEEVE - pressure tube clamp

4шт.

57

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

58

231-5146

FLANGE NUT,3/8"-16

2шт.

60

1304855C1

TUBE

- pilot pressure

1шт.

61

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss (Replaces connector 394955R1), Includes: Ref. 61A

1шт.

61a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

62

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

63

REF

INSTRUCTION

FILTER ASSEMBLY - header and reel drive, parts list figure 8-78

1шт.

64

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj. O-ring boss, Includes: Ref. 65

2шт.

65

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

66

1347044C1

SUPPORT

- hydraulic filter

1шт.

67

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

68

492-11038

LOCK WASHER,3/8"

3шт.

69

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

70

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

71

1304261C1

HYDRAULIC HOSE,1.00" ID x 20.00", SAE 100R2

- Reel drive pump 1.00" ID x 20.00", SAE 100R2

2шт.
