(8-52) - HEADER AND REEL DRIVE, SELECTOR VALVE SYSTEM

Запчасти Case IH 1670 (8-52) - HEADER AND REEL DRIVE, SELECTOR VALVE SYSTEM (07) - HYDRAULICS

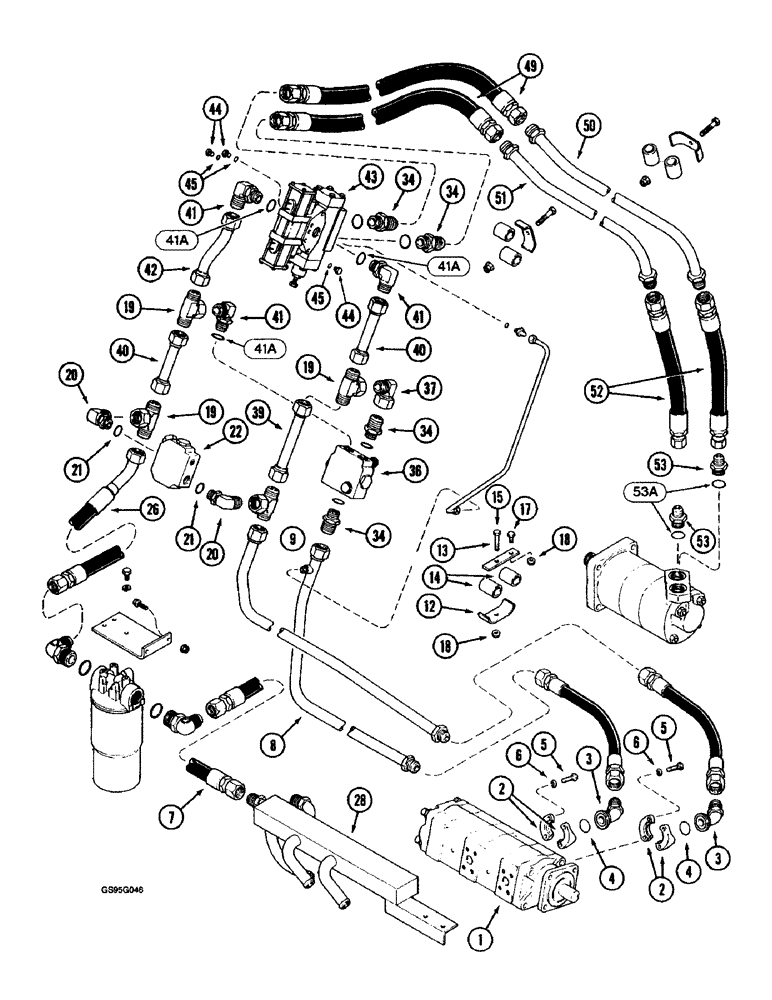

Схема запчастей Case IH 1670 - (8-52) - HEADER AND REEL DRIVE, SELECTOR VALVE SYSTEM (07) - HYDRAULICS
53a
13
3
45
34
3
43
50
44
41
12
5
19
44
40
53
51
9
17
6
42
52
28
49
1
4
20
5
6
2
34
19
15
26
7
37
40
20
4
36
19
41a
18
18
8
41a
41a
21
53
2
39
45
21
22
14
34
41
41
34
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1304186C91

PUMP

ASSEMBLY - header and reel drive, parts list figure 8-44

1шт.

2

877949C2

CLAMP

- hose

4шт.

3

1304968C1

ELBOW

TUBE - 45 degree elbow

2шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

6

492-11038

LOCK WASHER,3/8"

8шт.

7

1347334C1

HOSE ASSY.

HOSE - reel drive pump

1шт.

8

1304906C1

HYD TUBE,1" OD, 37.5, 14.3, 4" Length

TUBE - header drive pressure

1шт.

9

1304907C1

TUBE ASSY.

TUBE - header drive pressure

1шт.

12

1304932C1

CLAMP

- retaining

1шт.

13

195703C1

BAR

BRACKET - support retaining

1шт.

14

187935C1

STRIP

SLEEVE - pressure tube clamp

2шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- 1-5/16-12 inch swivel straight thread branch x flare x flare (Replaces tee 9410311)

4шт.

20

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj. O-ring boss (Replaces elbow 153619C91), Includes: Ref. 21

2шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

22

1304231C91

VALVE

- relief

1шт.

26

1347333C1

HOSE ASSY.

HOSE - header drive return

1шт.

28

1331268C1

MANIFOLD

- header

1шт.

34

218-5047

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

CONNECTOR - flared, 7/8 inch (Replaces connector 472755R1)

4шт.

36

1304234C91

VALVE

- flow control

1шт.

37

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel flare (Replaces elbow 9410285)

1шт.

39

1304853C1

TUBE ASSY.

TUBE - header drive pressure

1шт.

40

1304912C1

HYD TUBE

TUBE - header drive return

2шт.

41

218-5115

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-3/16-12 inch adj. O-ring boss (Replaces elbow 533566R1), Includes: Ref. 41A

3шт.

41a

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

3шт.

42

1304854C1

TUBE ASSY.,1" OD, 74, 1.8" Length

TUBE - header drive return

1шт.

43

1304243C91

VALVE

- selector

1шт.

Seal Kit anad Solenoids not available

1шт.

44

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 45 Hex Hd, 7/16"-20 ORB

3шт.

45

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

49

1304267C2

HOSE

- header drive, 86 inch long

2шт.

50

1304849C1

TUBE ASSY.,1" OD, 45.81, 10.87" Length

TUBE - header drive

1шт.

51

1304897C1

TUBE ASSY.,1" OD, 45.87, 9.5" Length

TUBE - header drive

1шт.

52

1304263C2

HOSE

- header drive

2шт.

53

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss (Replaces connector 380633R1), Incl. Ref. 53A

2шт.

53a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

2шт.
