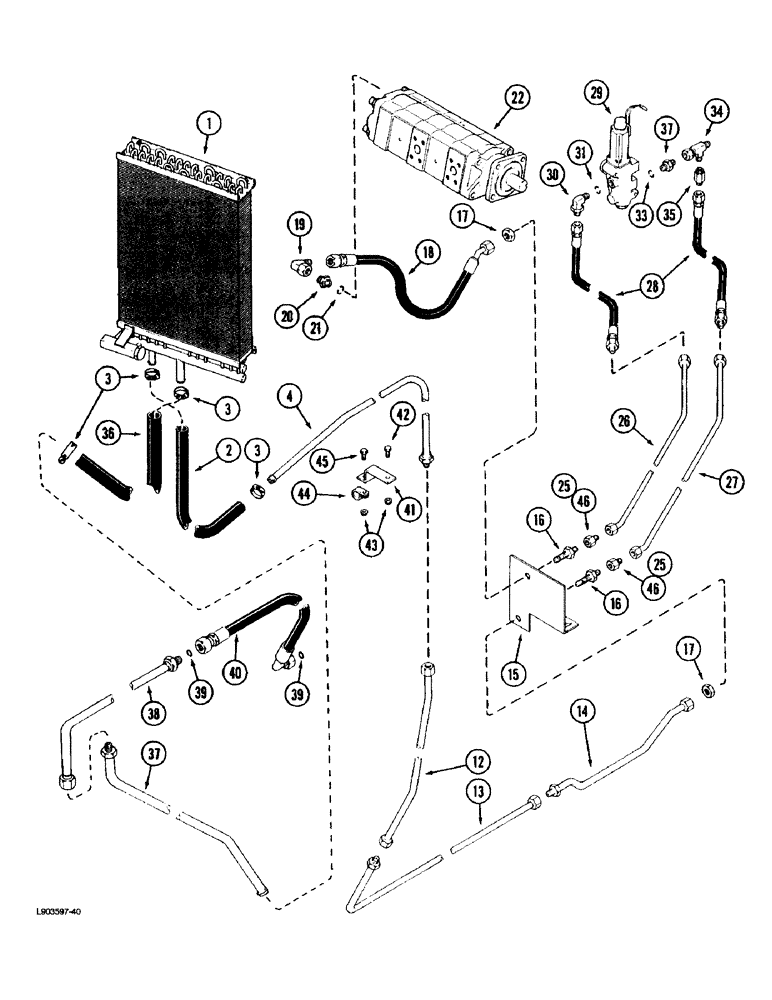

Запчасти Case IH 1670 (8-50) - HEADER AND REEL DRIVE, OIL COOLER TO PUMP SYSTEM (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER - hydraulic oil, parts list figure 8-10

1шт.

2

1347316C1

HOSE,19 mm ID x 559.00 mm, SAE 30R2

- oil cooler, 22 inch (559 mm) long, cut from 180720C2 bulk hose, see below

2шт.

3

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

retaining (Replaces clamp 27723R1) #16, 0.81/1.50 Type F Worm

4шт.

4

1331353C1

HYD TUBE

TUBE - oil cooler

1шт.

12

1304831C1

TUBE ASSY.

TUBE - reel drive return

1шт.

13

1304830C1

TUBE ASSY.,0.75" OD, 54, 7.6" Length

TUBE - reel drive return

1шт.

14

1304829C1

TUBE ASSY.,0.75" OD, 23.8, 4.3" Length

TUBE - reel drive return

1шт.

15

1957417C1

SUPPORT

PLATE - tube support

1шт.

16

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

2шт.

17

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF (Replaces nut 9403296)

2шт.

18

1304279C1

HOSE

- reel drive pressure

1шт.

19

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

1304186C91

PUMP

- header and reel drive, parts list figure 8-44

1шт.

25

9403405

REDUCER,37 Degree, 5/8" x 3/8" Tube

- 3/4 x 1/2 inch

2шт.

26

1347056C1

TUBE,0.5 mm OD, 1076.4 mm Length

- hydraulic

1шт.

27

1347057C1

TUBE,1064 mm Length

- hydraulic

1шт.

28

1331295C1

HOSE ASSY.,12.70 mm ID x 508.00, SAE 100R2

HOSE ASSY, 12.70 mm ID x 508.00 mm, SAE 100R2, Hydraulic, Reel Drive Valve

2шт.

29

1272619C93

VALVE

ASSEMBLY - reel drive, parts list figure 8-90

1шт.

30

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj. O-ring boss (Replaces elbow 93645R1), Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

35

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

1шт.

36

1347315C1

HOSE

- oil cooler, 23 inch (584 mm) long, cut from B90928 bulk hose, see below

1шт.

37

1331352C1

HYD TUBE

TUBE - reel drive return

1шт.

38

1331350C1

HYD TUBE

TUBE - reel drive return

1шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

40

1347335C1

HOSE ASSY.

HOSE - reel return

1шт.

41

196517C1

SUPPORT TUBE

SUPPORT - tube clamp retaining

1шт.

42

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

44

129083R1

CLAMP

- P-type, 5/8 inch ID

1шт.

45

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

46

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - hex, 1-1/16 inch NF (Replaces nut 9403530)

1шт.

180720C2

HOSE ASSY.

HOSE - bulk, 25 foot roll

1шт.

B90928

HOSE,25.40 mm ID, SAE 16, SAE 30R2

Bulk, 50 Foot Roll 25.40 mm ID, SAE 16, SAE 30R2

1шт.
