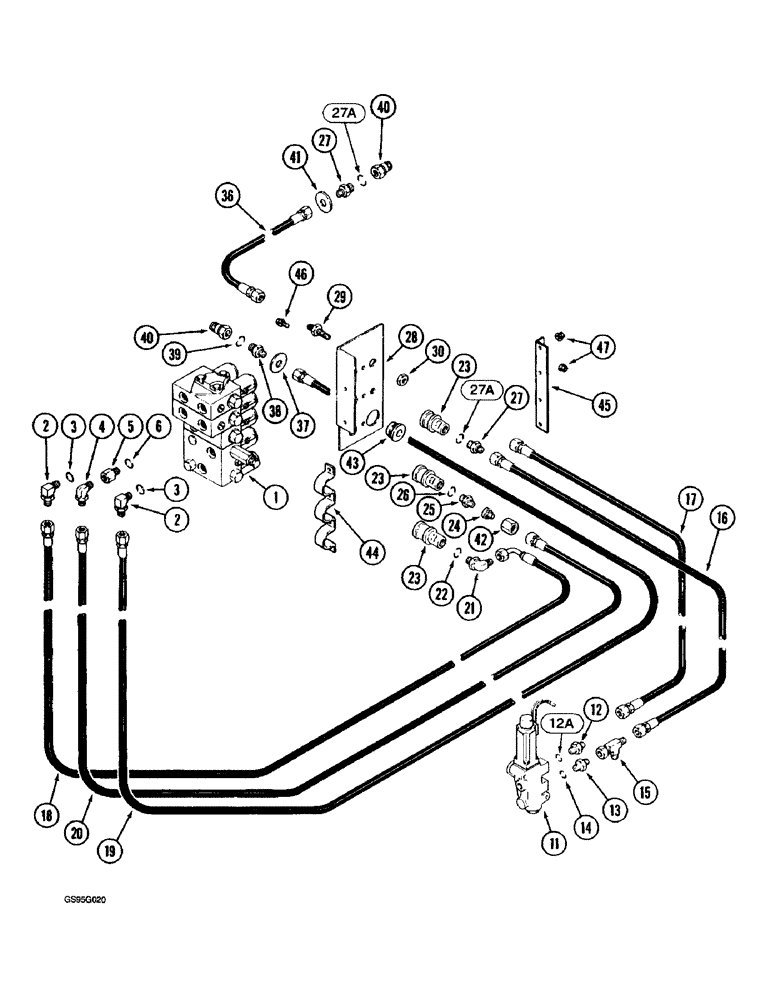

Запчасти Case IH 1670 (8-48) - HEADER AND REEL DRIVE, CONTROL VALVE SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic stack control, parts list figure 8-30

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Incl. Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss (Replaces connector 394955R1), Includes: Ref. 6

1шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

11

1272619C93

VALVE

ASSEMBLY - reel drive, parts list figure 8-90

1шт.

12

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 12A 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

16

1331292C1

HOSE ASSY.,9.52 mm ID x 2362.00, SAE 100R1

HOSE ASSY, 9.53 mm ID x 2362.00 mm, SAE 100R1, Hydraulic, Reel Drive Valve

1шт.

17

1331291C1

HOSE ASSY.,9.52 mm ID x 2438.00, SAE 100R1

HOSE ASSY, 9.53 mm ID x 2438.00 mm, SAE 100R1, Hydraulic, Reel Drive Valve

1шт.

18

1347108C1

HOSE ASSY.

HOSE - hydraulic, reel drive valve

1шт.

19

1347107C1

HOSE,6.35 mm ID x 6225.00, SAE 100R1 OR 100R1 AT

- hydraulic, control valve

1шт.

20

1347066C1

HOSE

- hydraulic, control valve, 191 inch (4851 mm), if used

1шт.

20

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

Control valve, if used 9.52 mm ID x 2795.00 mm

1шт.

21

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 9/16-18 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

3шт.

24

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

FITTING - reducer, 1/2 x 3/8 inch

1шт.

25

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 26 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

27

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 27A 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

28

1331294C1

SUPPORT

PLATE - hose support

1шт.

29

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 flare x bulkhead flare (Replaces union 9403255)

1шт.

30

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

36

1327580C1

HOSE

- 41 inch (1041 mm) long

1шт.

37

1327631C1

WASHER

- red

2шт.

38

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring (Replaces connector 935433R1), Includes Ref. 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

40

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male (Replaces coupler 1272399C1)

2шт.

41

1327632C1

WASHER

- flat, white

1шт.

42

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube, style B, 1/2 inch

1шт.

43

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hydraulic control valve hose, 3/4 inch ID

1шт.

44

1321990C1

CLAMP

- coupling

1шт.

45

1321989C2

SUPPORT

- coupling

1шт.

46

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange, 1/4 NC x 3/4 inch

6шт.

47

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.
