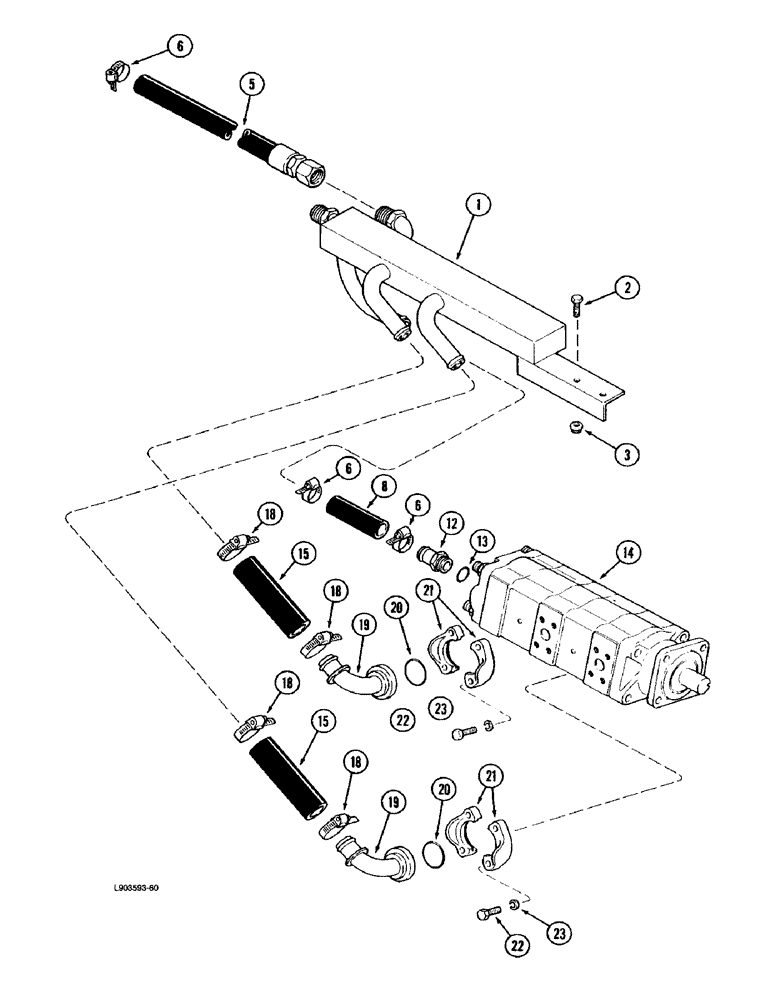

Запчасти Case IH 1670 (8-46) - HEADER AND REEL DRIVE, MANIFOLD AND PUMP (07) - HYDRAULICS

1

1331268C1

MANIFOLD

- header and reel drive

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

5

1347109C1

HOSE

- manifold suction

2шт.

6

214-2114

CLAMP,35.56mm - 39.62mm

- adj, 1-13/32 - 1-9/16 inch diameter

6шт.

8

1304977C1

HOSE,1.00" ID x 4.50", SAE 100R4

CLASS 4, Header Pump Suction; Cut From 190851C2 Bulk Hose; See Below 1.00" ID x 4.50", SAE 100R4

1шт.

12

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1 stem end x 1-1/16 x 12 inch adj. O-ring boss (Replaces connector 195731C1), Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

1304186C91

PUMP

ASSEMBLY - reel drive, parts list figure 8-44

1шт.

15

1304293C1

HOSE,31.75 mm ID x 177.80 mm

Flexible, , Header Pump Suction 31.75 mm ID x 177.80 mm

2шт.

18

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

19

1304966C1

ELBOW

TUBE - 90 degree elbow

2шт.

20

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

2шт.

21

301844R1

FLANGE

- split clamp retaining

4шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

190851C2

HOSE

- bulk, 83 inch long

1шт.
