(8-44) - HEADER AND REEL DRIVE PUMP

Запчасти Case IH 1670 (8-44) - HEADER AND REEL DRIVE PUMP (07) - HYDRAULICS

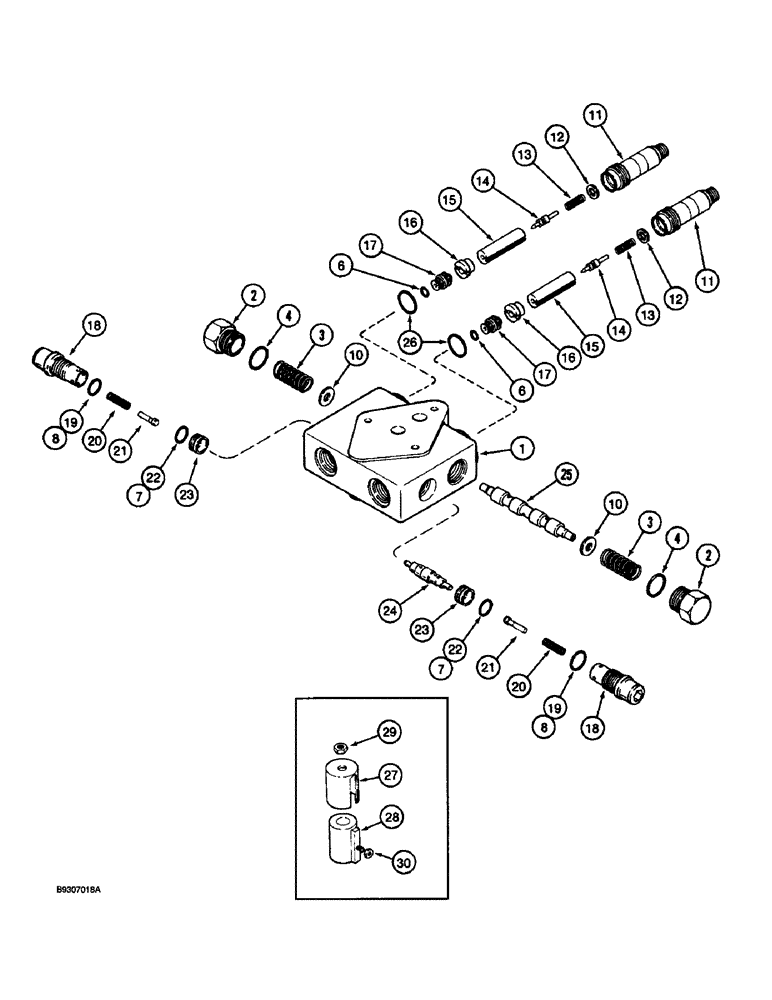

Схема запчастей Case IH 1670 - (8-44) - HEADER AND REEL DRIVE PUMP (07) - HYDRAULICS
12
21
3
17
29
26
11
1
2
8
20
15
25
7
22
17
14
6
16
12
19
13
10
28
14
24
15
27
6
8
2
4
23
19
13
16
18
20
3
23
18
7
22
30
21
11
4
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1304186C91

PUMP

ASSEMBLY - header and reel drive, Includes: Ref. 2 - 23

1шт.

2

637664C1

HOUSING

- pump

2шт.

3

D31955

PLATE

- gear (Replaces plate 610228C2)

6шт.

4

1304198C1

GEAR-SET

GEAR SET - pump, matched

1шт.

5

239-5244

O-RING,Rect, 4.25" ID x 4.5" OD, Cl 5

SEAL - quad, 4-1/4 x 4-1/2 x 1/8 inch (Replaces seal 3035569R1)

6шт.

6

1304268C1

KEY

- gear shaft

1шт.

7

50-1837T1

ROLLER BEARING

- pump (Replaces bearing 610247C91)

12шт.

8

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- shaft, bearing oil

6шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - pump (Order 1304186C91)

3шт.

13

634197C1

PLUG

- housing

2шт.

14

L32318

SEAL

- shaft, housing

1шт.

15

S88754

BALL BEARING

BEARING - pump (Replaces bearing 3035655R91)

1шт.

16

102-23283

SNAP RING,#283, 3.009", Int, Spiral

RING - retaining snap (Replaces ring 3035667R1)

1шт.

19

3035662R91

GEAR SET - pump

1шт.

20

3035663R1

SHAFT - pump

2шт.

21

631238C1

GEAR SET - pump

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - end (Order 1304186C91)

1шт.

23

625322R1

PLUG

- end cover

2шт.
