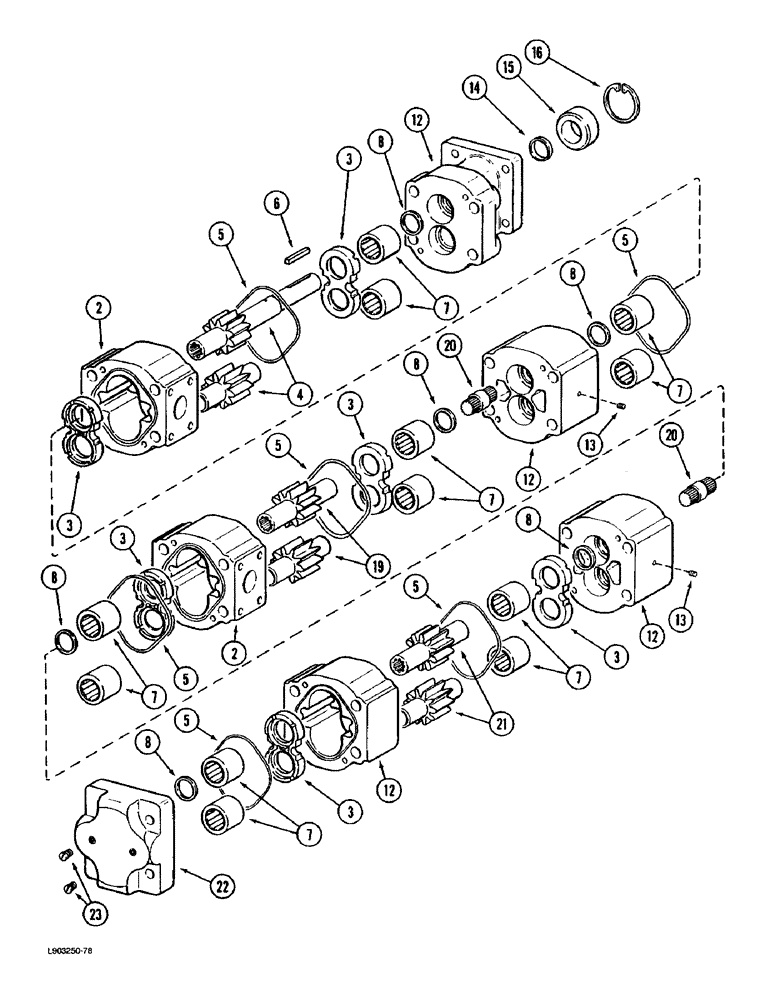

Запчасти Case IH 1670 (8-42) - HEADER AND REEL PUMP DRIVE (07) - HYDRAULICS

1

1304186C91

PUMP

ASSEMBLY - header and reel drive, parts list figure 8-44

1шт.

2

1331233C1

SUPPORT ASSY.

SUPPORT - pump mounting

1шт.

3

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, flat head, 1/2 NC x 1-1/2 inch (Replaces bolt 183254C1)

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

12

1331234C1

SUPPORT ASSY.

SUPPORT - idler shaft

1шт.

16

1304136C1

HUB

BUSHING - pulley

1шт.

17

83-15016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW - hex socket set, 1/2 NC x 1 inch

3шт.

18

1304268C1

KEY

- gear shaft

1шт.

19

1304185C1

PULLEY

- pump

1шт.

20

1331251C1

PULLEY

- separator belt idler

1шт.

21

1304061C2

V-BELT,0.88" W x 119.19" L

Pump Drive 0.88" W x 119.19" L

1шт.

22

191603C2

PULLEY

- drive, 12 inch O.D.

1шт.

25

1331226C1

SUPPORT ASSY.

SUPPORT - idler pivot

1шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

29

171227C1

LEVER

ARM - belt tightener

1шт.

31

439-1828

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch, grade 2

1шт.

32

432-1216

COTTER PIN,3/16" x 1"

1шт.

33

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

2шт.

34

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

35

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

36

171479C1

BOLT,1/2" - 13 x 24.70"

- tightener

1шт.

37

194652C1

PIVOT

- rod

1шт.

38

PO23

SPRING

- tightener rod

1шт.

39

190462C1

TUBE,1.171" ID, 1.315" OD, 6.88" Length

- tightener spring

1шт.

40

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

1шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

44

1304549C2

SUPPORT

BRACKET - shield, upper

1шт.

45

1304615C2

SUPPORT

BRACKET - shield, lower

1шт.

46

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

47

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

47

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

49

1304483C1

SUPPORT

SHIELD - pump drive

1шт.

50

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

14шт.

51

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

14шт.

52

1331231C1

SUPPORT ASSY.

SUPPORT - idler shaft

1шт.

53

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

54

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

1шт.

55

425-1010

NUT,5/8"-11, G5

1шт.
