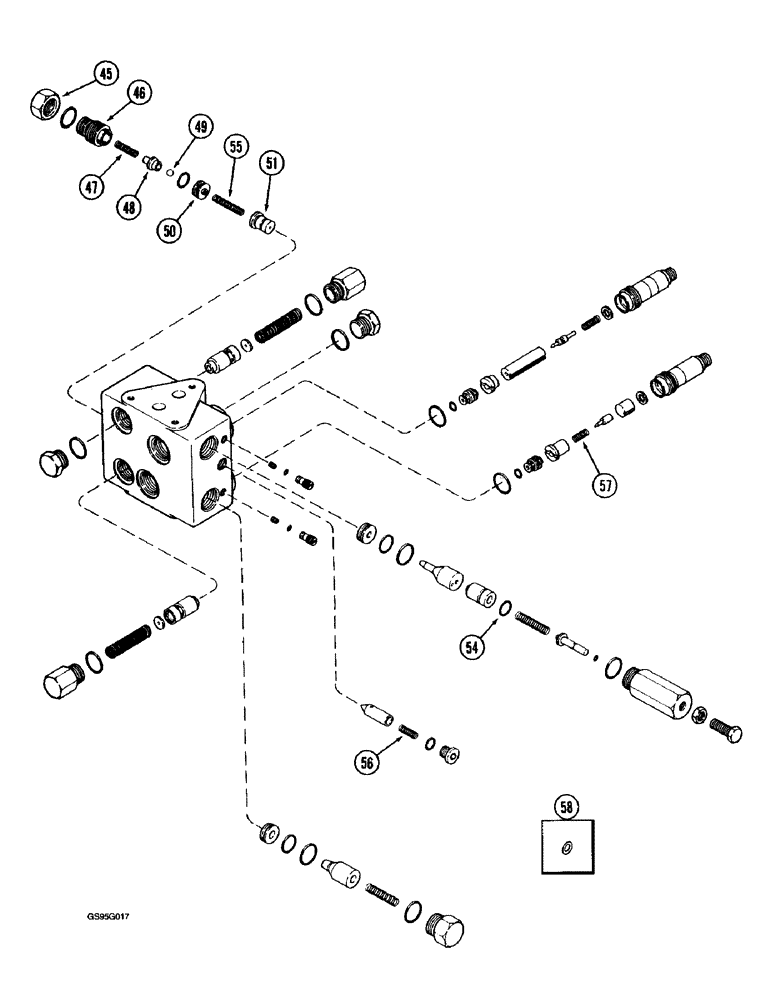

Запчасти Case IH 1670 (8-36) - HEADER VALVE, [CONT] (07) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - header, continued from 8-34, Includes: Ref. 45 - 58 and 1 - 44 on Fig. 8-34

1шт.

45

1301674C1

NUT

- hex, special, 1 inch

2шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - valve

2шт.

48

1301677C1

PIN

GUIDE - spring

2шт.

49

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

2шт.

50

1301654C1

NUT

ORIFICE - valve

2шт.

51

1301678C1

VALVE

POPPET - valve

2шт.

52

1301636C1

SPRING

- poppet

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

Part of Package Seals P/N 1282279C2

1шт.

55

1301679C1

SPRING

- orifice

2шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

KIT - shim, Includes: Ref. 58

1шт.

Part of Package Seals P/N 1282279C2

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch

1шт.

1282279C2

SEAL KIT

KIT - seal, Includes: Ref. 54, Shim Kit P/N 530575R91 and parts in Figure 8-34

1шт.
