Запчасти Case IH 1670 (8-24) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS

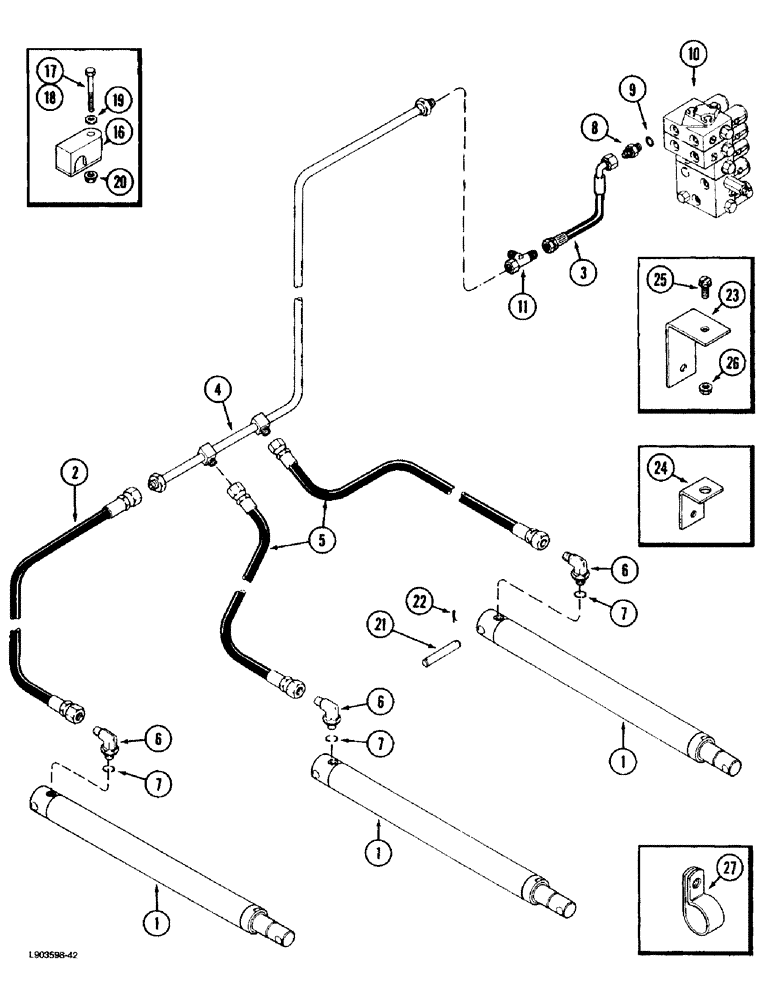

Схема запчастей Case IH 1670 - (8-24) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS
7
6
5
1
8
6
7
10
16
17
1
27
21
4
26
19
18
23
6
22
7
25
1
11
9
2
20
3
24

Артикул

Название

Примечание

Количество

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, parts list figure 8-28

3шт.

1

127779C94R

REMAN-HYD CYLINDER

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), P.I.N. JJC0080540 AND AFTER, Assembly, header lift (8/90-)

3шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

3шт.

2

D52256

HOSE

- header lift cylinder, 45 inch, if used (Replaces hose 1310709C1)

1шт.

2

813610C1

HOSE

- header lift cylinder, 50 inch, if used

1шт.

3

1310862C1

HOSE

- header lift cylinder, 29 inch

1шт.

4

1310832C1

TUBE

- header lift cylinder

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- header lift cylinder, 31 inch, if used

2шт.

5

1345115C1

HOSE

- header lift cylinder, 28 inch, if used

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 7

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figures 8-30 or 8-32

1шт.

11

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

16

183822C1

CLAMP

- header lift tube

3шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

21

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch

4шт.

21

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch

2шт.

22

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

12шт.

23

178950C1

ANGLE

BRACKET - mounting

1шт.

24

187834C1

ANGLE

BRACKET - clamp retaining

1шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

26

231-5146

FLANGE NUT,3/8"-16

2шт.

27

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type (Replaces clamp 892033C1) 1 1/4", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 28
