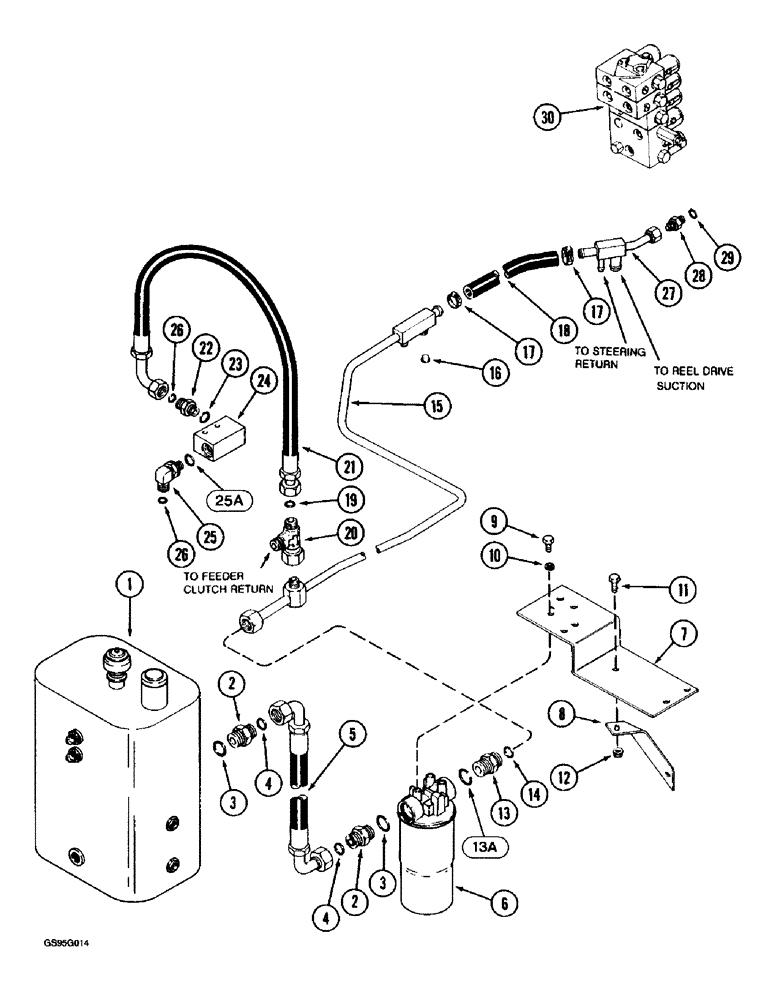

Запчасти Case IH 1670 (8-16) - HEADER LIFT RETURN SYSTEM (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list figure 8-2

1шт.

2

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

5

1980052C1

HOSE

-, Serial Range: filter-reservoir

1шт.

6

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic system return, parts list figure 8-78

1шт.

7

1347145C1

SUPPORT

- return filter

1шт.

8

1347153C1

SUPPORT

- return filter

1шт.

9

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

11

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 13A

1шт.

13a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

15

1347104C2

TUBE,1 mm OD, 2053 mm Length

- header lift return

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

1шт.

17

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

2шт.

18

1989252C1

HOSE - header lift return, 8 inch long, cut from B90927 bulk hose, see below

1шт.

19

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

20

201-417

TEE,1-3/16" - 12 JIC x 1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

- 1-3/16-12 inch face seal branch x face seal x swivel face seal

1шт.

21

1980049C1

HOSE

- relief valve drain

1шт.

22

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter - straight, Includes Ref. 23 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

549528R93

VALVE

ASSEMBLY - relief, parts list figure 8-18

1шт.

25

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch adj. O-ring boss

1шт.

25a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Includes Ref. 25A

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

1310757C1

TUBE

- header lift and steering return

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figures 8-30 or 8-30

1шт.

B90927

HOSE

- bulk, 50 foot roll

1шт.
