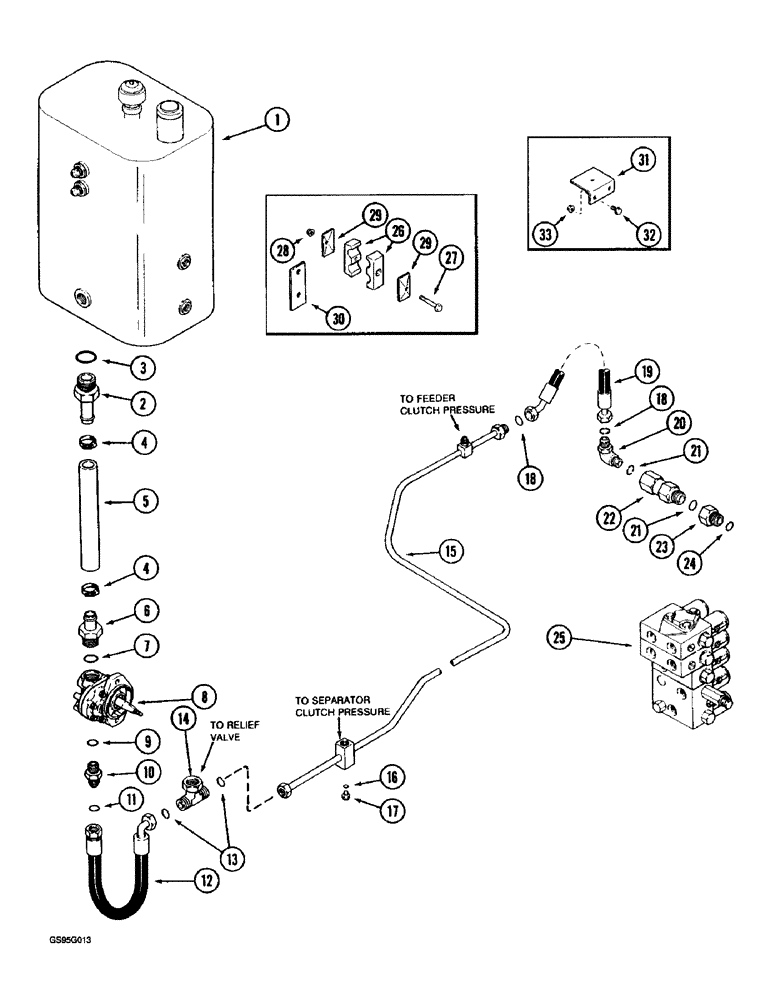

Запчасти Case IH 1670 (8-14) - HEADER LIFT SUPPLY SYSTEM (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list figure 8-2

1шт.

2

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 3 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

4

211-2114

CLAMP - adj, 1-13/32 - 1-9/16 inch diameter

2шт.

5

1970127C1

HOSE

- header lift suction (Replaces hose 1347144C1)

1шт.

6

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch hose stem

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - auxiliary hydraulic lift, parts list figure 8-22

1шт.

9

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter - straight, Includes Ref. 10 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

12

1980050C2

HOSE,15.88mm ID x 737mm L

- 29 inch (737 mm) long

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

14

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- 1-3/16-12 inch swivel face branch x face seal x face seal

1шт.

15

1347103C3

TUBE,2240 mm Length

- header lift pressure, one threaded end, if used

1шт.

15

196747C1

HYD TUBE

TUBE - header lift pressure, two threaded ends, if used

1шт.

17

S243647

COUPLING

- quick disconnect

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

1347114C2

HOSE

- valve stack supply (Replaces hose 1347114C1)

1шт.

20

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/6-12 inch adj. O-ring boss, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

22

1272346C1

FILTER

- inline

1шт.

23

1968919C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - control, see figures 8-30 or 8-32

1шт.

26

1347072C1

CLAMP

- 3/4 inch OD (Replaces clamp 157678C1)

3шт.

27

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

28

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

29

1347127C1

PLATE

- hydraulic tube clamp

4шт.

30

196868C1

BAR

SUPPORT - tube rear

1шт.

31

1347175C1

SUPPORT

BRACKET - mouting, hydraulic tube, front

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
