Запчасти Case IH 1670 (8-12) - AUXILIARY OIL COOLER (07) - HYDRAULICS

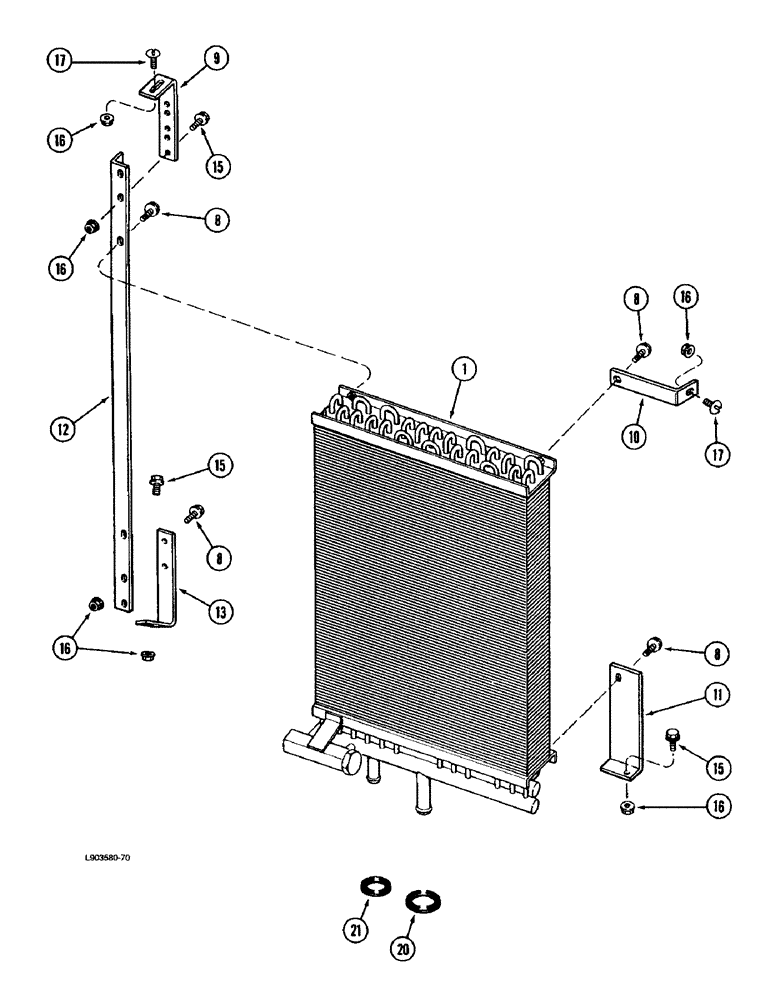

Схема запчастей Case IH 1670 - (8-12) - AUXILIARY OIL COOLER (07) - HYDRAULICS
20
15
16
15
16
8
1
17
17
12
16
8
16
15
8
16
10
21
9
8
13
11

Артикул

Название

Примечание

Количество

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, hydraulic, auxiliary, parts list figure 8-10

1шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

9

1979632C2

SUPPORT

- oil cooler, upper left-hand

1шт.

10

1979674C1

SUPPORT

- oil cooler, upper right-hand

1шт.

11

1979787C2

SUPPORT

- oil cooler, lower right-hand

1шт.

12

1979633C2

SUPPORT

- oil cooler, strap, left-hand

1шт.

13

1979727C1

SUPPORT

- oil cooler, lower left-hand

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

2шт.

17

4009-7516

BOLT - hex serrated flange, 5/16 NC x 1 inch, if used

2шт.

20

1970461C1

GROMMET

- rubber, 1-1/2 x 1-1/8 x 7/16 inch

2шт.

21

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch

2шт.

Выбрано товаров: 14
