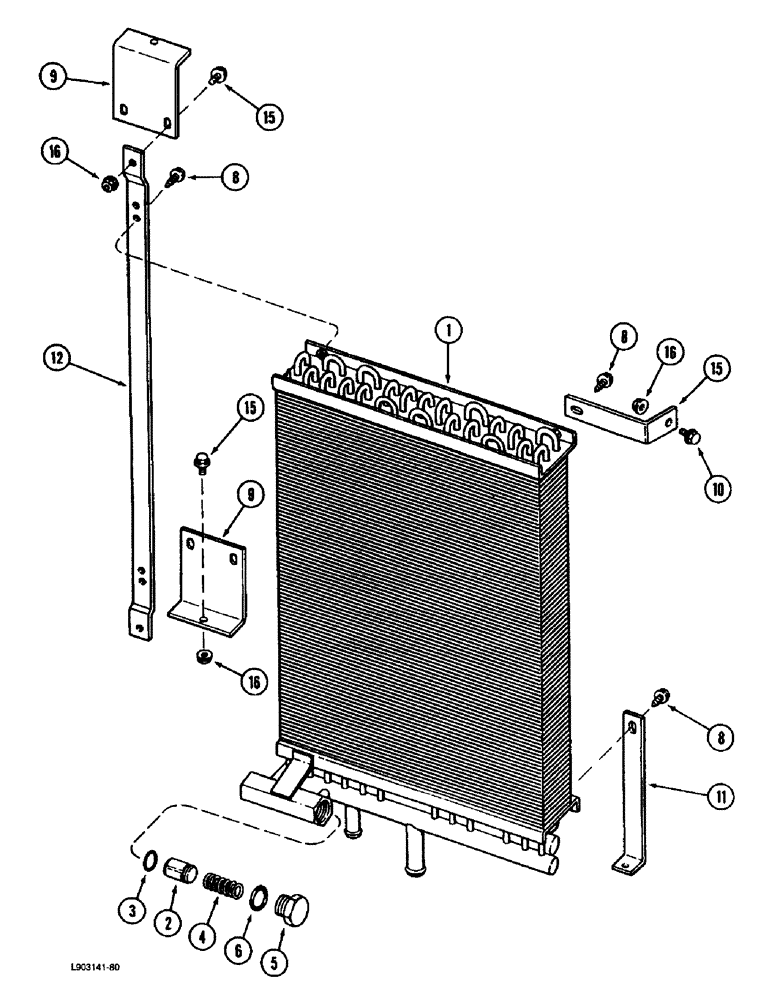

Запчасти Case IH 1670 (8-10) - OIL COOLER (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil (Replaces cooler assembly 84659C1), Includes: Ref. 2 - 6

1шт.

2

93198C1

VALVE

VALVE - bypass

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

O-RING, -020, 70 Duro, .864" ID x .070" Thk

1шт.

4

A189029

SPRING

SPRING - bypass valve

1шт.

5

273916

PLUG,Hex, 1-5/16" - 12 ORB

PLUG, , Includes Ref. 6 Hex Hd, 1 5/16"-12 ORB

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING, 16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

8

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

9

1324913C1

SUPPORT

SUPPORT - oil cooler, left-hand

2шт.

10

1329771C1

SUPPORT

SUPPORT - oil cooler, upper right-hand

1шт.

11

1324914C1

SUPPORT

SUPPORT - oil cooler, lower right-hand

1шт.

12

1329983C1

SUPPORT

SUPPORT - strap, oil cooler, left-hand

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

6шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.
