Запчасти Case IH 1670 (8-08) - HYDROSTATIC PUMP SYSTEM, PUMP RETURN (07) - HYDRAULICS

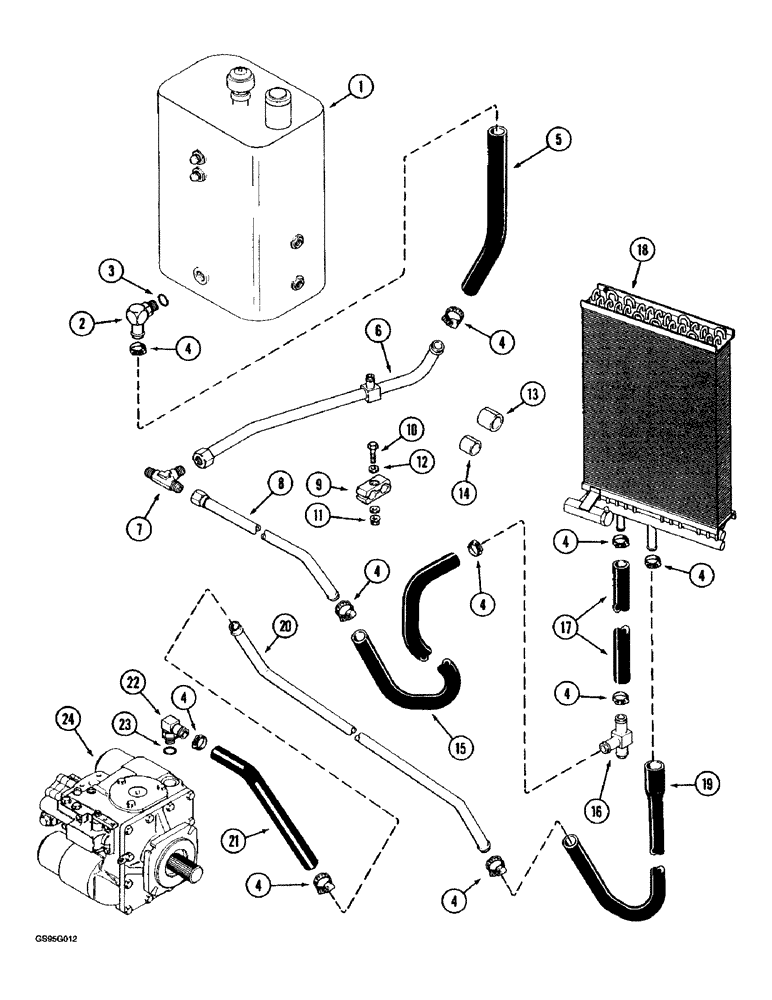

Схема запчастей Case IH 1670 - (8-08) - HYDROSTATIC PUMP SYSTEM, PUMP RETURN (07) - HYDRAULICS
23
4
4
36
1
13
9
4
22
18
3
4
17
4
14
15
7
10
6
24
4
4
19
4
8
2
4
12
4
21
20
11
5

Артикул

Название

Примечание

Количество

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic oil, parts list figure 8-2

1шт.

2

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, 1 stem end x 1-5/16-12 inch adj. O-ring boss

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. (Replaces clamp 27723R1) #16, 0.81/1.50 Type F Worm

8шт.

5

NSS

NOT SOLD SEPARAT

HOSE - cooler to reservoir return, 15-1/2 inch long, cut from B90928 bulk hose, see below

1шт.

6

1979731C1

TUBE

- cooler return

1шт.

7

218-598

TEE,1 5/16"-12 37 Degree

- 1-5/16-12 inch flare

1шт.

8

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

9

1347071C1

CLAMP

- 1 inch OD

1шт.

10

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

12

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

13

187935C1

STRIP

SLEEVE - pressure tube clamp

2шт.

14

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - rubber, 3/4 ID x 1-13/64 inch long

2шт.

15

NSS

NOT SOLD SEPARAT

HOSE - leveling suction, 210 mm long, cut from B90928 bulk hose, see below

1шт.

16

1979672C1

TEE

- 1 inch stem end

1шт.

17

87707C1

HOSE

- auxiliary cooler, 480 mm long, cut from 87085C2 bulk hose, see below

1шт.

18

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, parts listfigure 8-10

1шт.

19

1979783C1

HOSE

- oil cooler supply, furnish 13-3/4 inch (349 mm) 364361C1 hose, 1979768C1 adapter, two 27723R1 clamps, 22-1/2 inch (572 mm) B90927 hose

1шт.

20

1979658C1

HYD TUBE,1" OD

TUBE - oil cooler supply

1шт.

21

87085C1

HOSE

- bulk, 12 inch long, cut from 87085C2 bulk hose, see below

1шт.

22

178995C1

ELBOW

- 90 degree, special, 1 inch barb end x 1-1/16 inch PT

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

1343716C3

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list figure 6-16

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1670 (S/N JJC0080540 AND AFTER) (8/90-), Reman for New P/N 1343716C3

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

B90928

HOSE,25.40 mm ID, SAE 16, SAE 30R2

Bulk, 50 Foot Roll 25.40 mm ID, SAE 16, SAE 30R2

1шт.

87085C2

HOSE ASSY.

HOSE - bulk, 25 foot roll

1шт.

Выбрано товаров: 28
