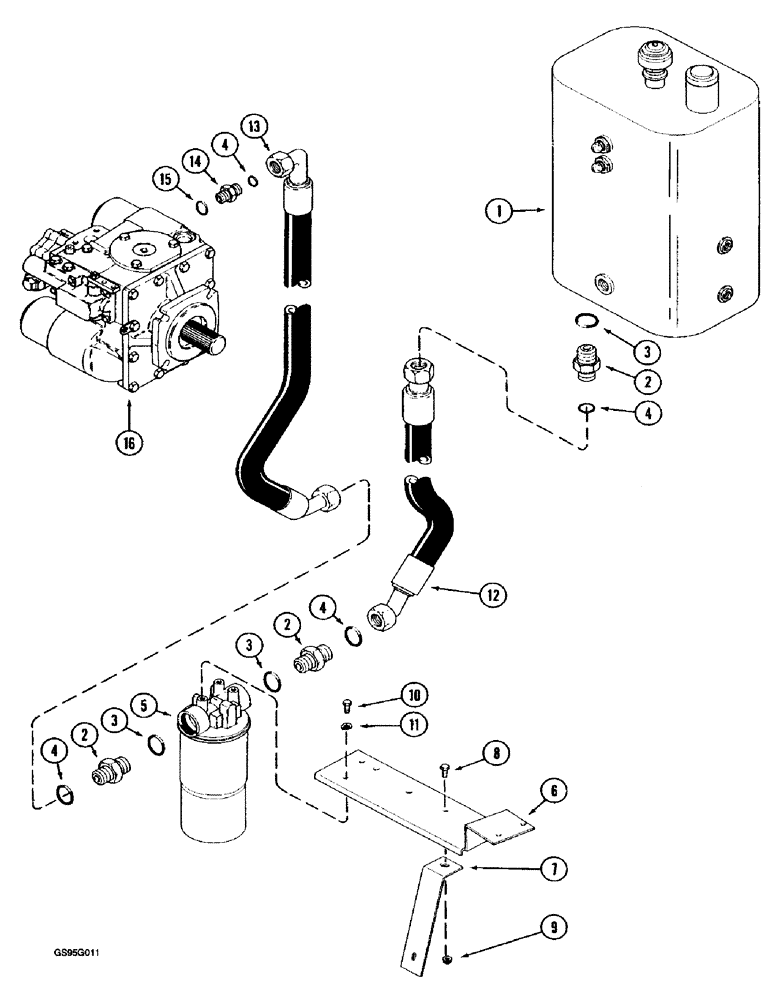

Запчасти Case IH 1670 (8-06) - HYDROSTATIC PUMP SYSTEM, PUMP SUCTION (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, parts list figure 8-2

1шт.

2

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-11/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 3

3шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

3шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

4шт.

5

REF

INSTRUCTION

FILTER - hydraulic, parts list figure 8-78

1шт.

6

1347113C3

BRACKET

- filter mounting (Replaces bracket 134113C2)

1шт.

7

1347116C2

SUPPORT

- charge pump filter (Replaces support 1347116C1)

1шт.

8

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

9

231-5146

FLANGE NUT,3/8"-16

4шт.

10

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

1347259C1

HOSE

- reservoir suction filter

1шт.

13

1347261C1

HOSE

-, Serial Range: filter-pump

1шт.

14

201-134

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/16"-12 ORB

CONNECTOR - straight, 1 x 1-1/4 inch

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

1343716C3

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list figure 6-16

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1670 (S/N JJC0080540 AND AFTER) (8/90-), Reman for New P/N 1343716C3

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.
