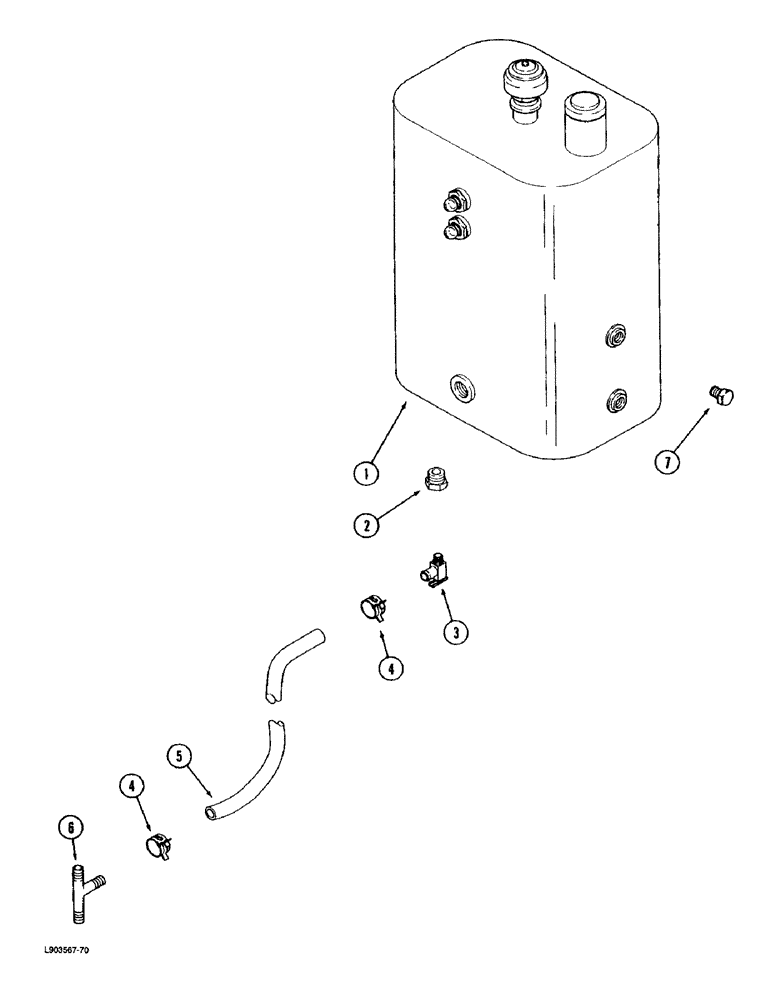

Запчасти Case IH 1670 (8-04) - HYDRAULIC RESERVOIR DRAIN SYSTEM (07) - HYDRAULICS

1

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR - hydraulic, parts list figure 8-2

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

301803R1

SHUT-OFF VALVE

VALVE - oil drain shutoff

1шт.

4

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

5

1347032C2

HOSE,15.75 mm ID x 1350.00 mm

- reservoir drain, 1350 mm long, cut from 1977295C1 bulk hose below

1шт.

6

1977169C1

TEE

- oil drain

1шт.

7

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

1977295C1

TUBE

- bulk, 50 foot roll

1шт.
