Запчасти Case IH 1670 (8-02) - RESERVOIR, HYDRAULIC OIL (07) - HYDRAULICS

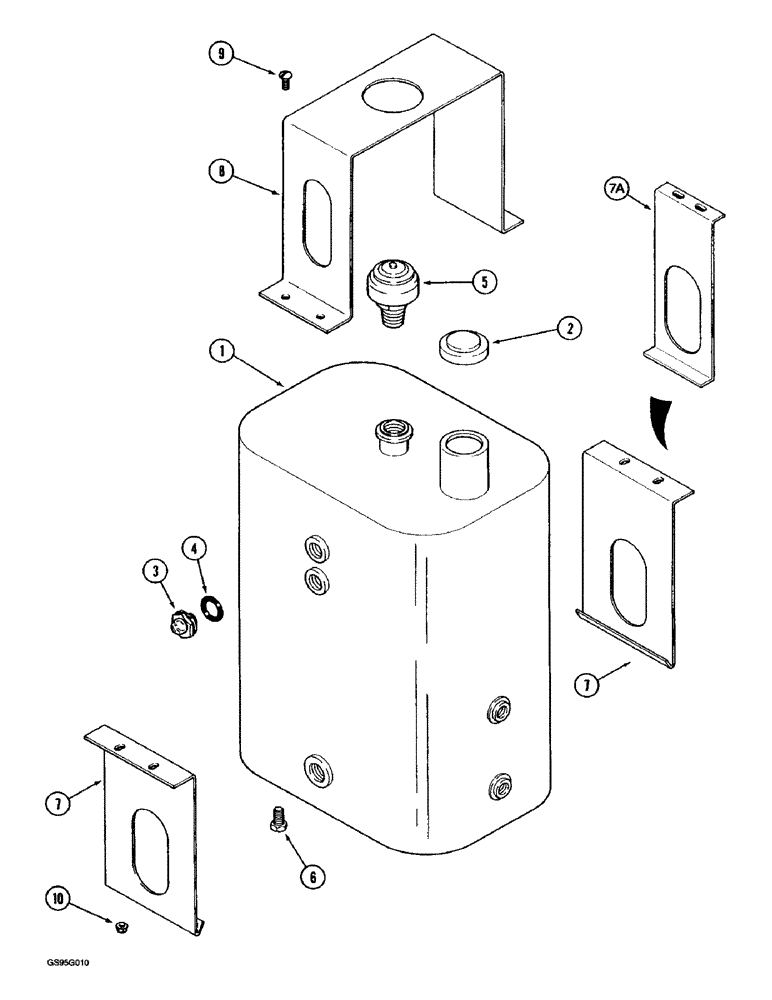

Схема запчастей Case IH 1670 - (8-02) - RESERVOIR, HYDRAULIC OIL (07) - HYDRAULICS
3
6
7
5
9
10
2
7
1
4
8
7a

Артикул

Название

Примечание

Количество

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, 10 gallon (Replaces reservoir assembly 1343660C1), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - reservoir (Order 1343600C2)

1шт.

2

1346309C1

PLUG

CAP - fill, non-vented

1шт.

3

244600R92

SIGHTGLASS

GAUGE - sight

2шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

5

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

6

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

7

1979829C1

SUPPORT

- hydraulic reservoir, if used

2шт.

7a

193201C1

BUSHING

SUPPORT - hydraulic reservoir, if used

2шт.

8

1347146C1

CLAMP

- reservoir

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

4шт.

9

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

Выбрано товаров: 13
