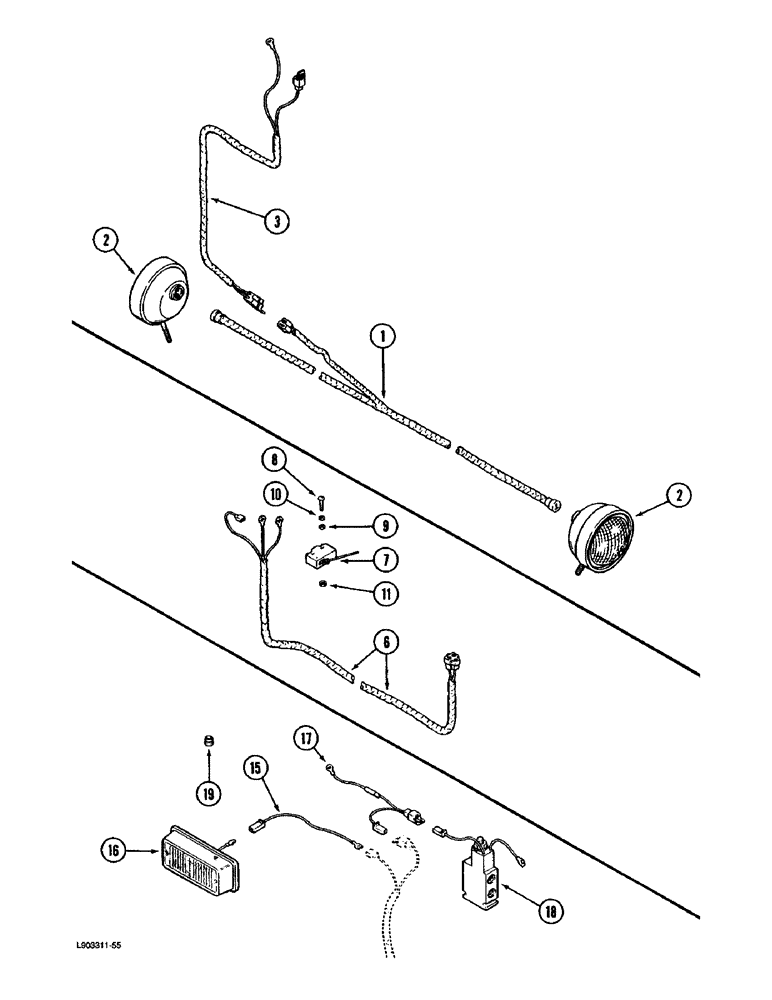

Запчасти Case IH 1670 (4-74) - FEEDER LAMP HARNESS, FOUR WHEL DRIVE HARNESS, FLASHER EXTENSION HARNESS (06) - ELECTRICAL

1

1304980C2

HARNESS

- feeder lamp, lower

1шт.

2

245954C91

LAMP

ASSEMBLY - feeder, parts list figure 4-36

2шт.

3

1304979C2

HARNESS

- feeder lamp, upper

1шт.

6

1331331C1

HARNESS

- 4 wheel drive control

1шт.

7

1310827C2

SWITCH

- third gear lockout (Replaces switch 1310827C1), 4 wheel drive harness

1шт.

8

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch, 4 wheel drive harness

4шт.

9

495-31016

WASHER,#6

4 wheel drive harness #6

4шт.

10

138526

LOCK WASHER

- internal tooth lock, special, No. 6\, 4 wheel drive harness

4шт.

11

225-14106

NUT,#6-32

4 wheel drive harness #6-32

4шт.

15

1304981C1

HARNESS

- flasher extension

1шт.

16

130882C91

LAMP

LAMP - flasher, parts list figure 4-38, extension harness

1шт.

17

1300707C1

KIT

CABLE - feeder solenoid, flasher extension harness

1шт.

18

REF

INSTRUCTION

VALVE - feeder clutch solenoid, parts list figure 8-64, flasher extension harness

1шт.

19

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

- rubber, 5/16 x 23/32 x 7/16 inch, flasher extension harness

2шт.
