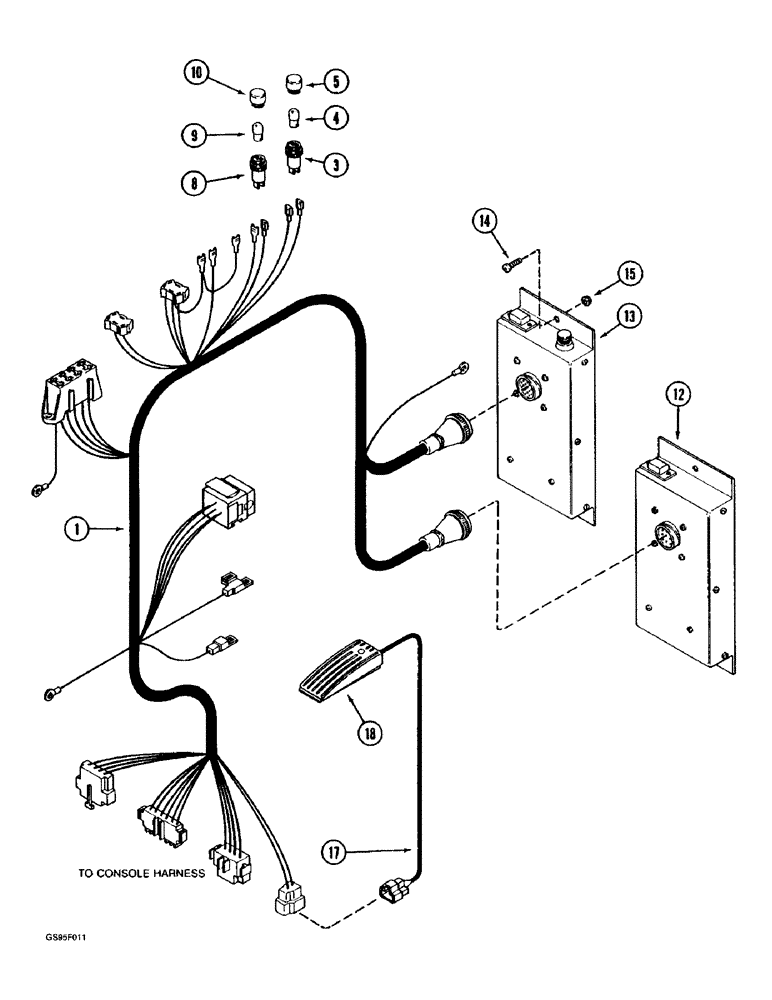

Запчасти Case IH 1670 (4-72) - CONSOLE LEVELING SYSTEM (06) - ELECTRICAL

1

1983635C1

HARNESS

- console leveling

1шт.

3

121684C91

LIGHT ASSY.

LAMP ASSEMBLY - 4 wheel drive indicator, Includes: Ref. 4 and 5

1шт.

4

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

5

71892C1

LENS

- lamp

1шт.

8

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - maximum level indicator, Includes: Ref. 9 and 10

1шт.

9

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

10

71652C1

LENS

- lamp

1шт.

12

1310875C2

CONTROL

MODULE - leveling system

1шт.

13

1310701C3

CONTROL

MODULE - 4 wheel drive shift

1шт.

14

440-12516

SCREW,Cross Pan Hd, 1/4"-20 x 1"

- machine, pan head, 1/4 NC x 1 inch

4шт.

15

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

4шт.

17

1304650C1

HARNESS

- 4 wheel drive foot switch

1шт.

18

1304684C1

SWITCH

- 4 wheel drive foot

1шт.
