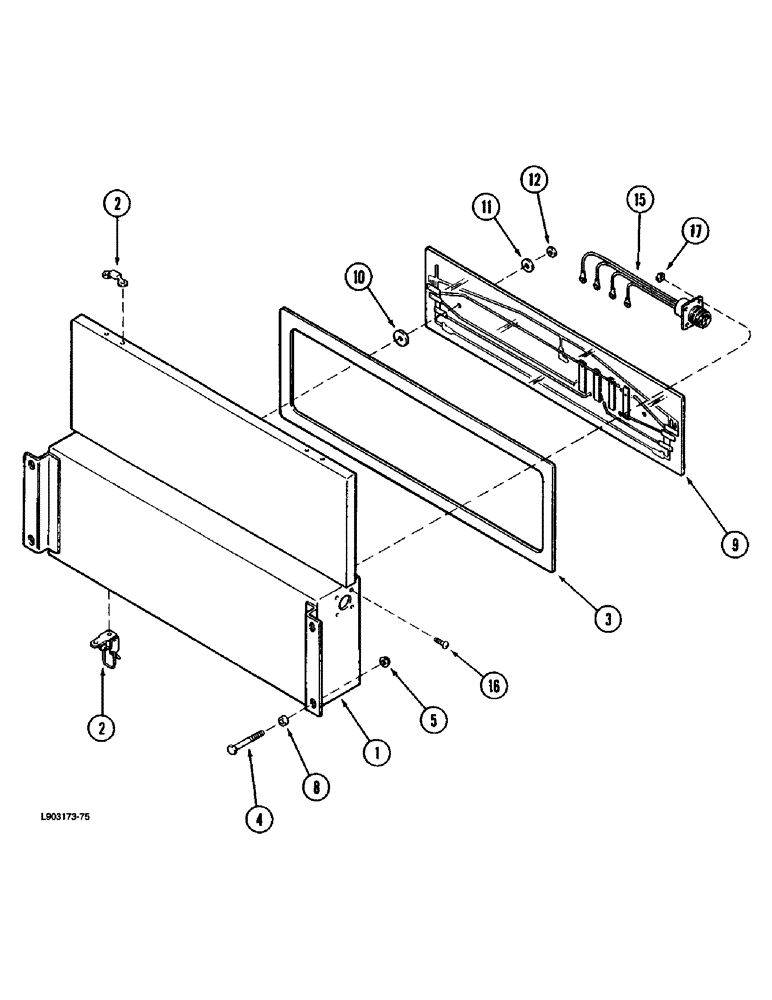

Запчасти Case IH 1670 (4-68) - LEVELING SYSTEM CONTROL BOX (06) - ELECTRICAL

1

1304228C92

BOX

ASSEMBLY - leveling system control, Includes: Ref. 2 and 3

1шт.

2

1304645C1

LATCH

- control box, includes both pieces

2шт.

3

1304249C1

SEAL

- control box

1шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

86224H

SPACER,1/4" Pipe x 3/8"

4шт.

9

1304226C1

SWITCH

- mercury

1шт.

10

611352R1

WASHER

- rubber, 5/16 x 7/8 x 5/32 inch

2шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

12

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

15

1304789C1

HARNESS

- leveling

1шт.

16

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

- machine, pan head, No. 6-32 x 1/2 inch (Replaces screw 132705)

4шт.

17

231-14106

NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC

4шт.
