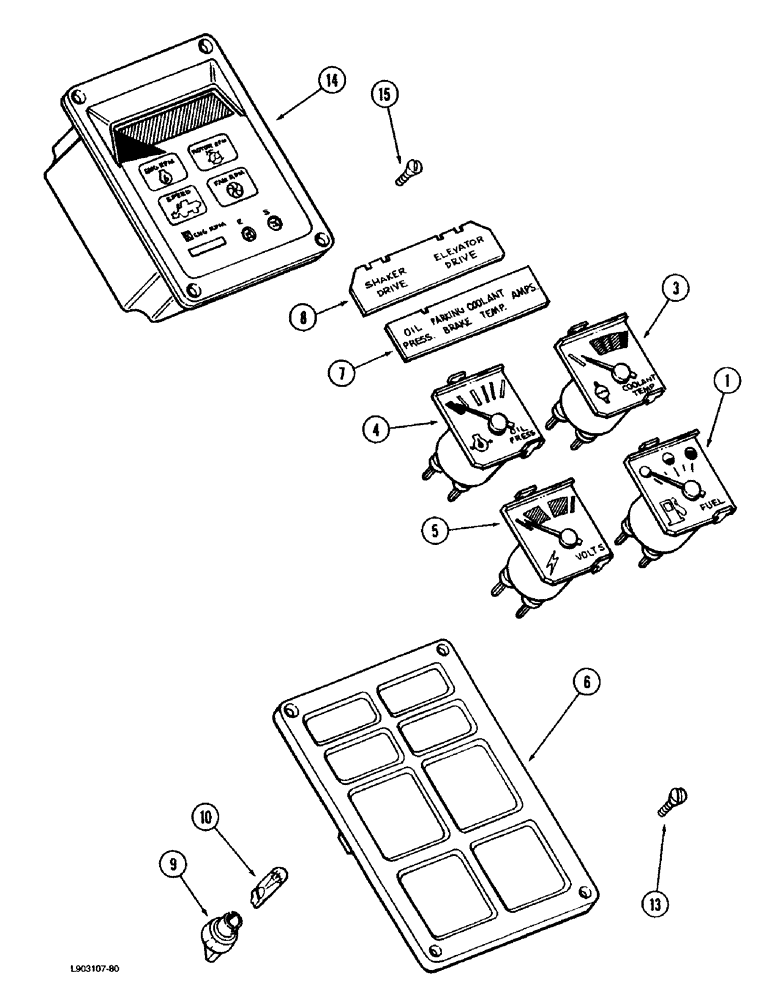

Запчасти Case IH 1670 (4-50) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

1983246C1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 1 - 10

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - coolant temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

GAUGE - system voltage

1шт.

6

121608C1

GASKET

BEZEL - instrument cluster

1шт.

7

187597C1

LENS

LENS - oil pressure, brake, temperature, and amperes

1шт.

8

1979357C1

LENS

LENS - warning lamp, shaker and elevator, coolant level

1шт.

9

121611C1

SOCKET

SOCKET - bulb, instrument cluster

8шт.

10

W10478

LAMP

BULB - illumination, No. 194

8шт.

13

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.

14

1987322C1

TACHOMETER

TACHOMETER - engine, new

1шт.

14

1935114C2

REMAN-ELECT GAUGE

TACHOMETER - engine, remanufactured, North America only (Replaces tachometer 1935114C1)

1шт.

14

1935113C2

CORE GAUGE ELECT

Core-Electrical Gauge Return Number - use this part number to return tachometer core for credit when using a remanufactured assembly (Replaces return number1935113C1)

1шт.

1987322C2

TACHOMETER

TACHOMETER - engine, new

1шт.

15

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

4шт.
