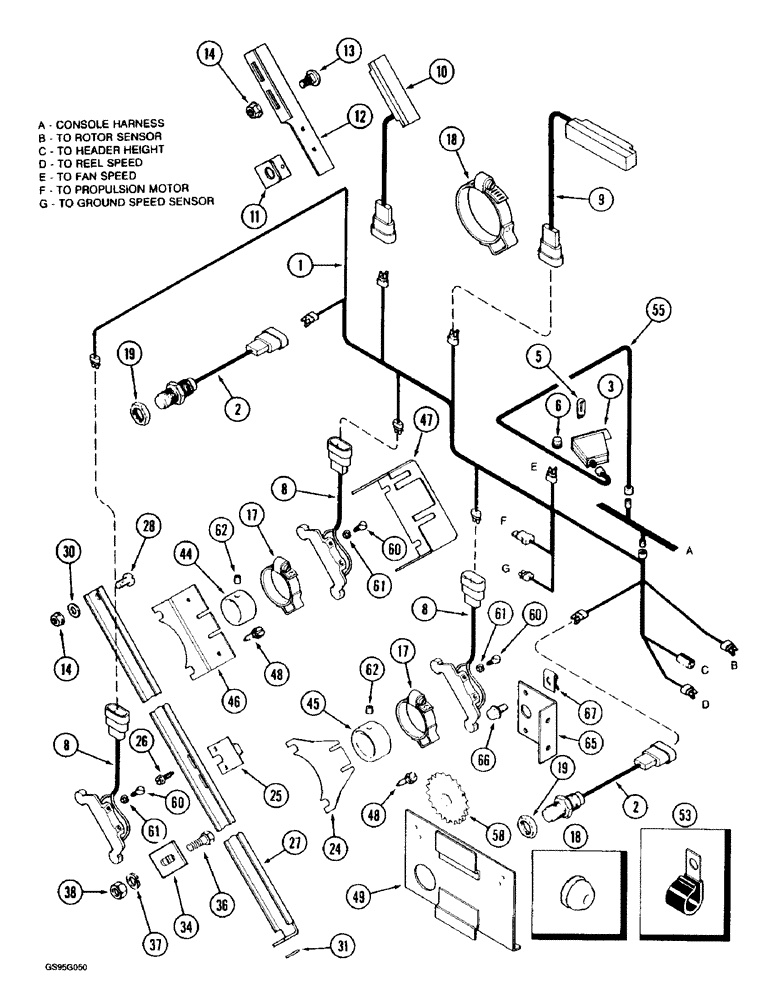

Запчасти Case IH 1670 (4-46) - SHAFT SPEED MONITOR CONTROL, COMBINE WITH STRAW CHOPPER (06) - ELECTRICAL

1

1983535C1

HARNESS

HARNESS - shaft speed, rear

1шт.

2

245193C2

SENSOR

SENSOR - transducer, for straw spreader, feeder, ground speed, rotor, and fan

5шт.

3

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, with decal, new, Includes: Ref. 5

1шт.

3

1935072C1

REMAN-ELECT MONITOR

1670 CASE IH HILLSIDE COMBINE (S/N JJC0080540 & AFTER), MONITOR ASSEMBLY, shaft speed, with decal, new, COMBINE W/ STRAW CHOPPER (8/90-)

1шт.

3

1935071C1

CORE-MONITOR

Return Number

1шт.

5

A48888

BULB

BULB - lamp, trade No. 73, 14 volt

1шт.

6

178876C1

SUPPRESSOR

SUPPRESSOR - audible alarm

1шт.

8

245365C1

TRANSMITTER

SENSOR - monitor control, for rotary air screen

2шт.

9

245410C1

TRANSMITTER

SENSOR - monitor control, for straw chopper

1шт.

10

245364C1

SWITCH

SWITCH - monitor control, for shoe, tailing auger, and clean grain sensor

3шт.

11

187996C1

MAGNET

MAGNET - shoe sensor

1шт.

12

187998C2

ANGLE

SUPPORT - shoe sensor

1шт.

13

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

17

178800C1

CLAMP

MAGNET - sensor, for clean grain and tailings auger

2шт.

18

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET - sensor, for straw chopper

1шт.

19

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex, jam, 3/4 inch NF

2шт.

24

178795C1

BRACKET

BRACKET - clean grain sensor

1шт.

25

196987C1

MAGNET

MAGNET - sensor, for rotary air screen

1шт.

26

263-5448

SELF-TAP SCREW,Pan HD, #8 - 18 x 1/2"

SCREW - self-tapping, pan slotted, No. 8-18 x 1/2 inch

2шт.

27

1329865C1

CHANNEL

CHANNEL - transmitter mounting, rotary air screen

1шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW - slotted truss head, 5/16 NC x 3/4 inch, if used

3шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

BOLT, , If used Hex Flg, 5/16"-18 x 1", Serr

3шт.

30

179454C1

RUBBER WASHER

WASHER - flat, rubber, special

1шт.

31

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

34

1301560C1

SUPPORT

BRACKET - mounting, rotary air screen sensor adjustment

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

37

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

44

178801C1

COLLAR

COLLAR - tailings elevator shaft

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR - locking, clean grain auger

1шт.

46

183869C3

SUPPORT

BRACKET - tailings sensor (Replaces bracket 183869C2)

1шт.

47

181208C3

SUPPORT

COVER - tailings sensor bracket (Replaces bracket 187616C1)

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head 1/4-14 x 1/2 inch (Replaces screw 23986R1)

4шт.

49

1979323C1

SHIELD

COVER - clean grain auger sensor

1шт.

53

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

1шт.

53

362666R1

CLIP

CLAMP - harness retaining

1шт.

53

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLAMP - harness retaining

1шт.

53

169850C2

CABLE CLIP

CLIP, CABLE - front monitor harness (Replaces clip 169850C1)

2шт.

55

245242C1

HARNESS

HARNESS - shaft speed, front

1шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor

1шт.

60

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

SCREW - machine, pan head slotted, No. 8 x 3/8 inch (Replaces screw 436693)

3шт.

61

492-11008

LOCK WASHER,#8

Washer, Lock, (Replaces washer 121841) #8

3шт.

62

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4 x 3/8 inch, cup point (Replaces screw 125735)

2шт.

65

1330063C1

SUPPORT

SUPPORT - sensor, feeder shaft

1шт.

66

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

BOLT, Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

67

403276R1

NUT

NUT - U-type, 5/16 inch NC (Replaces nut 403276R1)

2шт.
