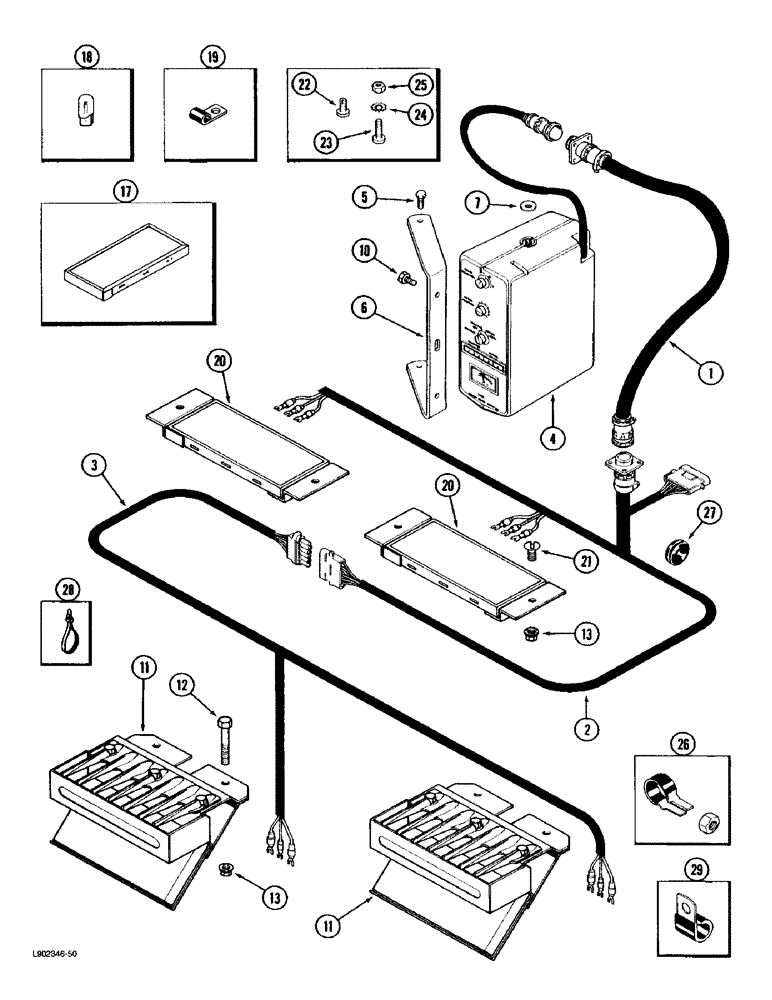

Запчасти Case IH 1670 (4-44) - GRAIN SCAN MONITOR (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
245237C1
HARNESS
- cab
1шт.
2
245239C1
HARNESS
- main sensor
1шт.
3
245930C2
HARNESS
- chaffer sensor, With Chaffer Extension
1шт.
1935074C1
REMAN-ELECT MONITOR
MONITOR - grain scan, remanufactured, North America only
1шт.
1935073C1
CORE-MONITOR
RETURN NUMBER - use this part number to return monitor for credit when using a remanufactured assembly
1шт.
4
245360C2
TESTER
MONITOR - grain scan, new
1шт.
5
326-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
2шт.
6
1280160C2
SUPPORT
BRACKET - monitor mounting
1шт.
7
179454C1
RUBBER WASHER
- flat, rubber, special
2шт.
10
313-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
- hex, 5/16 NC x 1/2 inch
2шт.
11
245361C2
TRANSMITTER
BLOCK - chaffer sensor
2шт.
12
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
4шт.
13
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
8шт.
17
245884C1
TRANSMITTER
BLOCK - grain sensor
1шт.
18
A48888
BULB
- lamp, trade No. 73, 14 volt
1шт.
19
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
- closed (Replaces clamp 299399C1)
2шт.
20
245362C1
TRANSMITTER
BLOCK - rotor sensor
2шт.
21
135270
SERRATED SCREW,5/16" - 18 x 3/4"
- slotted truss head, 5/16 NC x 3/4 inch, if used
4шт.
21
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
If used Hex Flg, 5/16"-18 x 1", Serr
4шт.
22
260-1356
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch
4шт.
23
440-10610
SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"
- machine, pan Phillips, No. 6 NC x 5/8 inch
4шт.
24
493-11014
LOCK WASHER,Ext-Int Tooth, #6
WASHER - internal-external tooth lock, 1/8 inch
4шт.
25
225-14106
NUT,#6-32
4шт.
26
245738C2
CLAMP
- retaining
1шт.
27
195804C1
GROMMET
- left-hand side sheet, 1/2 inch
1шт.
28
702093C1
CABLE TIE
STRAP - tie, self-locking, black
1шт.
29
363444R1
CLAMP,J, 9/16" Insul, 3/8" Bolt
- harness retaining
8шт.
29
363660R1
CLIP
CLAMP - harness retaining
1шт.
Выбрано товаров: 28
