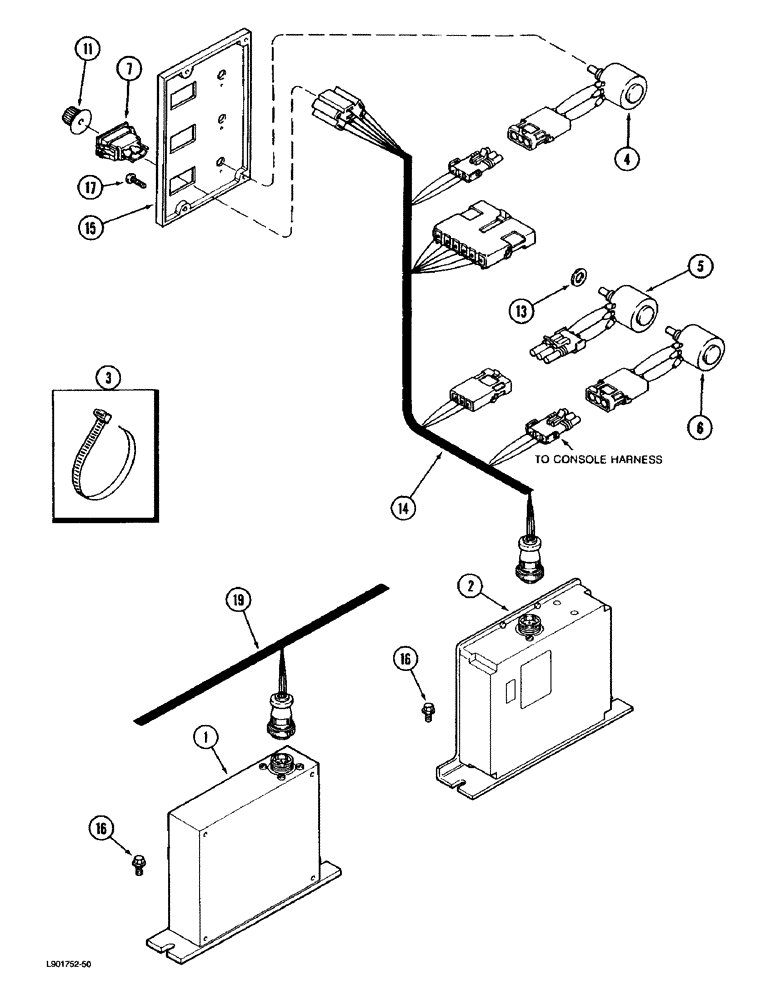

Запчасти Case IH 1670 (4-40) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROLS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

CONTROL - automatic feeder cutoff

1шт.

2

1983212C1

CONTROL BLOCK

CONTROL - automatic reel speed to ground speed

1шт.

3

702093C1

CABLE TIE

STRAP - tie, self-locking, black

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Single, Speed Setting 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration, Single 200,000 Ohm

1шт.

7

245697C1

SWITCH

- automatic/manual, rocker

1шт.

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

11

1345235C1

BUTTON

KNOB - reel to ground speed control

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

245923C1

HARNESS

- reel to ground speed

1шт.

15

1280158C2

PANEL

- front control, see figure 9G-2 for other right-hand console parts

1шт.

16

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

17

265-14412

SCREW - oval head, No. 8-18 x 3/4 inch (Replaces screw 27204R1 )

1шт.

19

1345237C1

HARNESS

- console, see figure 4-6 for right-hand console harness routing

1шт.
