(4-32) - CLEANING FAN AND ROTOR SPEED HARNESS

Запчасти Case IH 1670 (4-32) - CLEANING FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

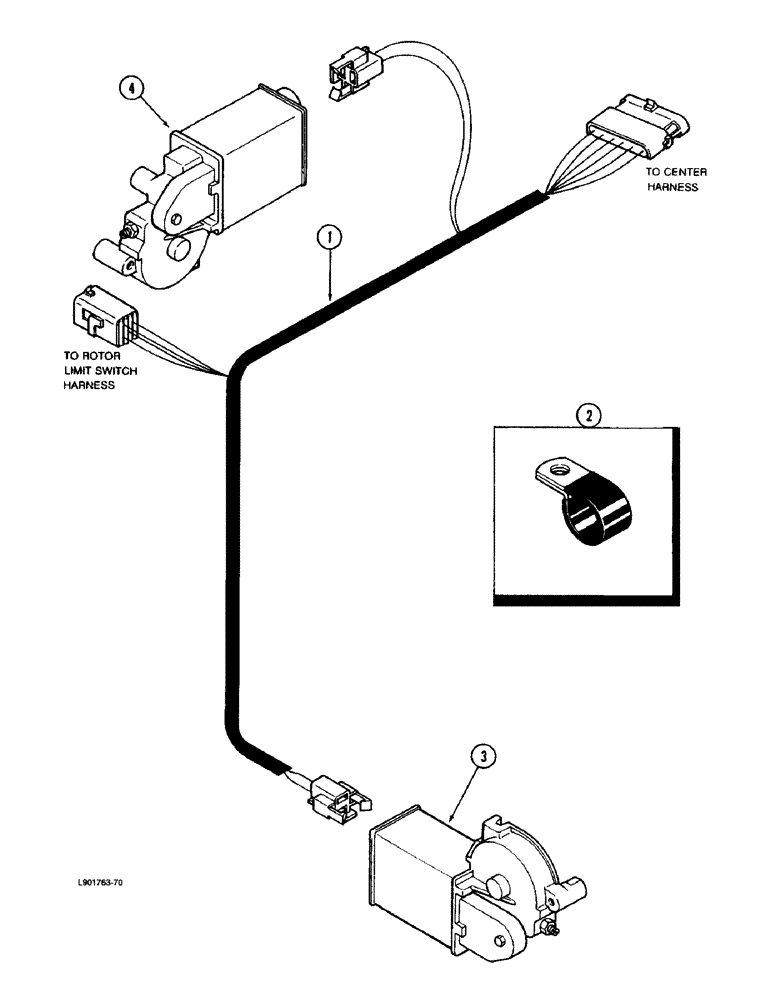

Схема запчастей Case IH 1670 - (4-32) - CLEANING FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983397C1

HARNESS

- fan and rotor speed

1шт.

2

84183C1

CLAMP

CLIP - center harness

1шт.

3

126573C1

MOTOR, ELECTRIC

MOTOR - fan speed, see figure 9C-12 for mounting and related parts

1шт.

4

126573C1

MOTOR, ELECTRIC

MOTOR - rotor speed, see figure 9B-6 for mounting and related parts

1шт.

Выбрано товаров: 4
