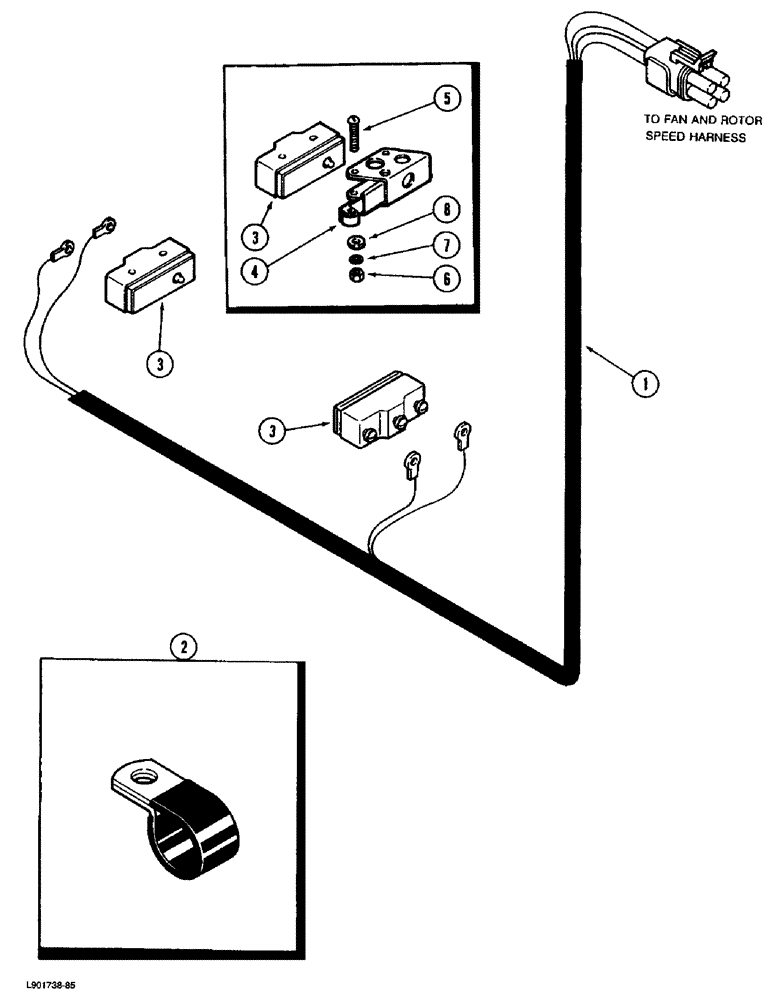

Запчасти Case IH 1670 (4-30) - ROTOR LIMIT SWITCH HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS - rotor limit switch

1шт.

2

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- harness retaining

3шт.

3

186057C1

SWITCH

- rotor limit

2шт.

4

128298A1

IGNITION SWITCH

ACTUATOR - rotor limit switch (Replaces actuator 186058C1)

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch (Replaces screw 436670)

4шт.

6

225-14106

NUT,#6-32

(Replaces nut 134530) #6-32

4шт.

7

138526

LOCK WASHER

- internal tooth lock, special, No. 6

4шт.

8

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (Replaces washer 103337)

4шт.
