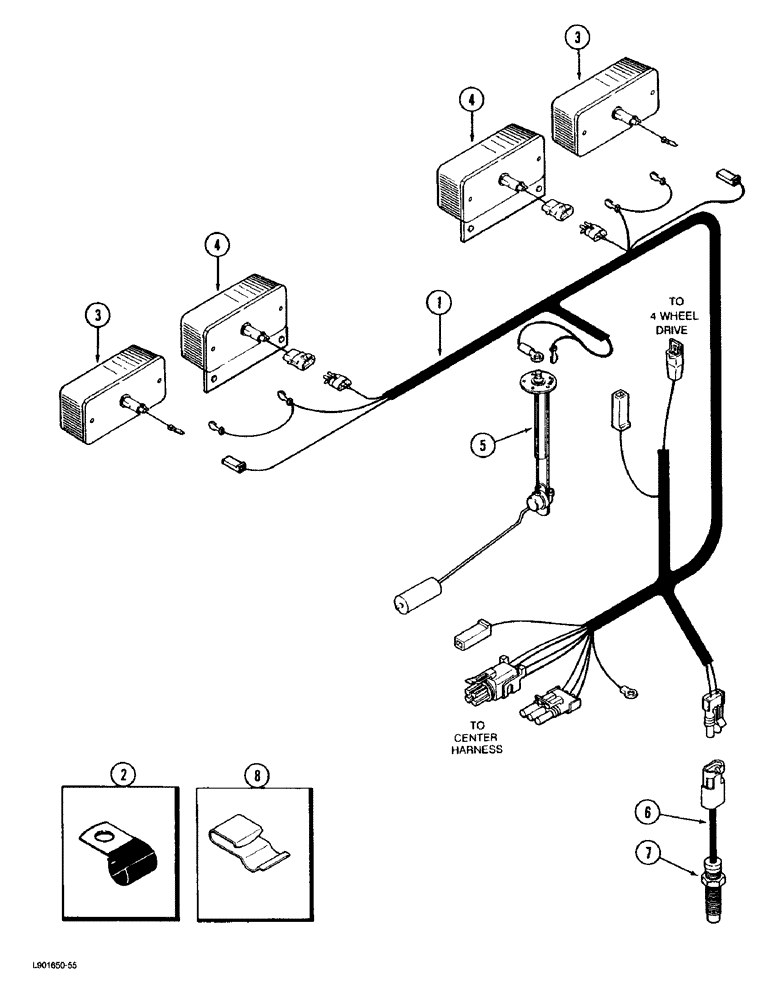

Запчасти Case IH 1670 (4-28) - MAIN REAR HARNESS (06) - ELECTRICAL

1

1983342C2

HARNESS

- rear lamps and fuel sender

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness retaining

6шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear, parts list figure 4-38

2шт.

4

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, parts list figure 4-38

2шт.

5

198024C1

FUEL GAUGE

GAUGE - fuel level sending unit, seefigure 3-12 for mounting

1шт.

6

1252494C2

TRANSMITTER

SENSOR - transducer, engine RPM

1шт.

7

84116C1

NUT

- hex, self-locking, 3/4 inch NF, transmitter retaining

2шт.

8

1304761C1

CLIP

- harness retaining, purchase locally

1шт.
