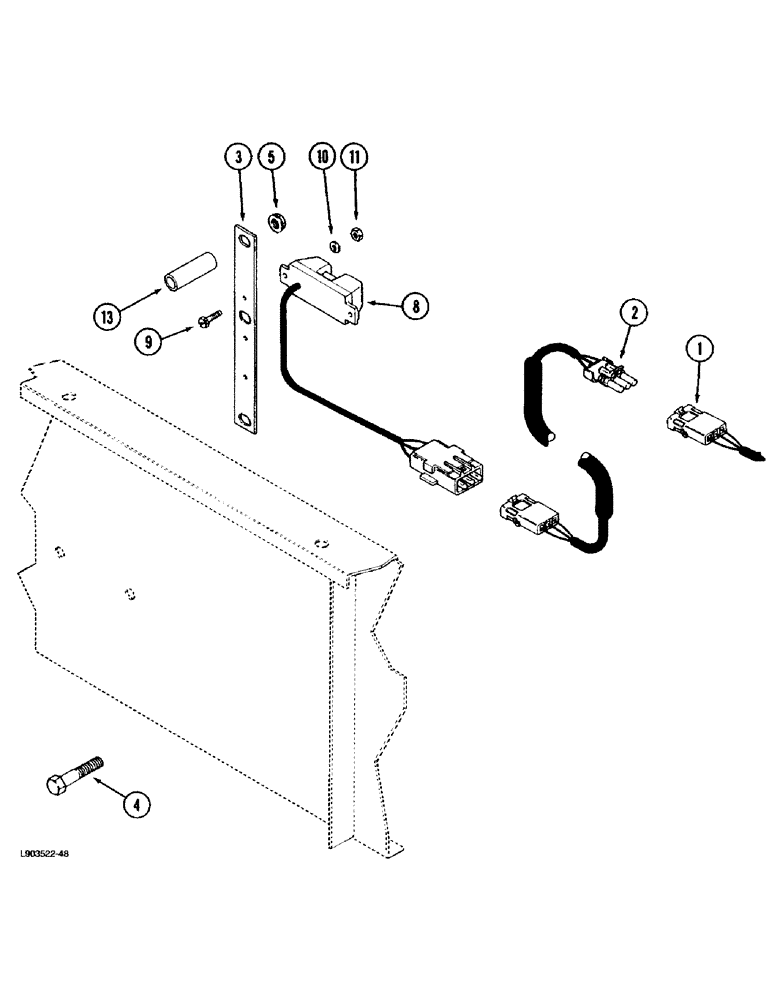

Запчасти Case IH 1670 (4-24) - GRAIN TANK LEVEL SENSOR (06) - ELECTRICAL

1

245243C3

HARNESS

- grain tank

1шт.

2

1338321C2

HARNESS

- tank level

1шт.

3

1338320C2

SUPPORT

- level sensor

2шт.

4

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

If used Hex, 5/16"-18 x 2", G5

4шт.

4

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, if used

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

84204C1

SENSOR

- grain tank level

1шт.

9

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

10

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

11

225-14110

NUT,#10-24

2шт.

13

65881H

SPACER,1/4" Pipe x 1 1/4"

- tubular, 1/4 x 1-1/4 inch

4шт.

13

33847A

SPACER,1/4" Pipe x 1 13/16"

- sensor support, 1/4 x 1-13/16 inch

4шт.
