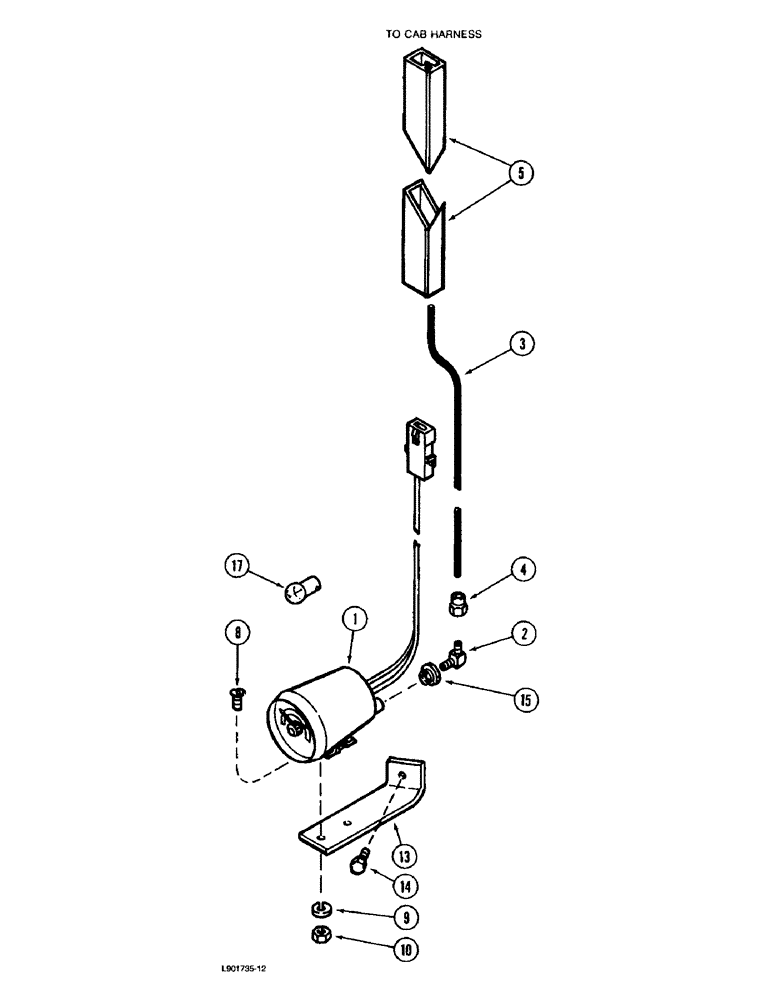

Запчасти Case IH 1670 (4-20) - POWER BOOST MONITOR (06) - ELECTRICAL

1

1977144C3

GAUGE ASSY.

MONITOR - power boost, 30 PSI

1шт.

2

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

- 90 degree, compression, 1/8 tube O.D. x 1/8 inch PT

2шт.

3

NSS

NOT SOLD SEPARAT

TUBE - engine to monitor, 204 inch long, cut from 1954063C1, see below

1шт.

4

1977102C1

FITTING

CONNECTOR - tube retaining

1шт.

5

1977142C1

CONDUIT

- harness and tubing

1шт.

8

368-10810

SCREW,Sl Oval Hd, #8 - 32 x 5/8"

- machine, oval head slotted, No. 8 NC x 5/8 inch

2шт.

9

392-11008

LOCK WASHER,#8

#8

2шт.

10

225-13108

NUT,#8-32

2шт.

13

1979103C2

ANGLE

BRACKET - monitor support

1шт.

14

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

15

1989678C1

FITTING

REDUCER - pipe, 1/2 male x 1/8 inch female

1шт.

17

F64363

BULB

- lamp, No. 161 (Replaces bulb 28791R1)

1шт.

1979215C1

TAPE

- adhesive, not shown

1шт.

1954063C1

PLASTIC-RUBBER TUBE,0.125" OD

TUBE - 100 foot roll

1шт.
