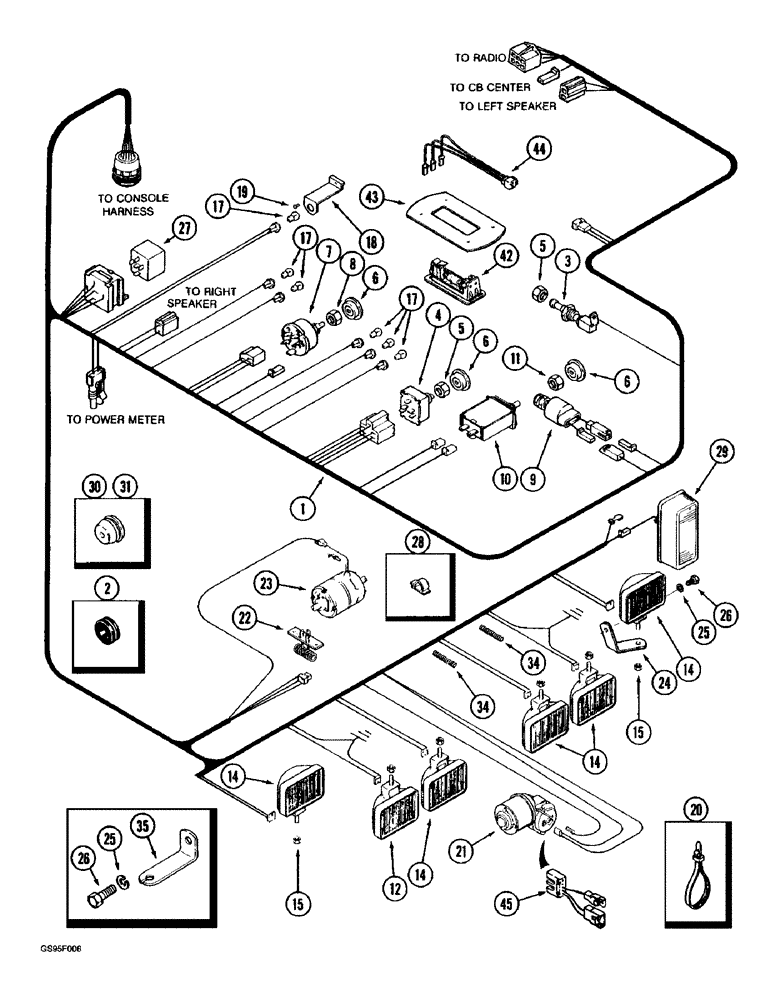

Запчасти Case IH 1670 (4-14) - CAB ROOF HARNESS (06) - ELECTRICAL

1

84311C5

HARNESS

- cab roof

1шт.

2

83931C1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex, jam, 7/16 inch NF

2шт.

6

111282C1

KNOB

- control, blower, wiper, and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioning, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex, jam, 7/16 inch NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - head lamp, 40 x 7 Halogen

1шт.

14

245897C91

LAMP, WORK

LAMP - work lamps and outdoor flood lamps, 80 x 30 Halogen

5шт.

15

325-108

NUT,1/2"-13, G5

- hex jam, 1/2 inch - 13 NC, grade 5 (Replaces nut 118617)

6шт.

17

A14553

BULB

LAMP - bulb, No. 57

5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

28152R1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - No. 8-18 x 1/2 inch

5шт.

20

702093C1

CABLE TIE

STRAP - tie, self-locking, black

6шт.

21

1276130C92

WIPER MOTOR

MOTOR ASSEMBLY - wiper, parts list figure 4-66

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower, 12 volt (Replaces motor 142990C2)

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1670 S/N JJC0080540 & Aft.

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1281876C1

BRACKET

- outer flood lamp mounting, left-hand

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

(Replaces bolt 24860R1) Hex, 1/2"-13 x 1", G8, Full Thd

1шт.

27

1983394C1

RELAY

- electrical, air conditioning (Replaces relay 1-7877)

1шт.

28

169850C2

CABLE CLIP

CLIP, CABLE - harness, plastic (Replaces clip 169850C1)

6шт.

29

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list figure 4-38

1шт.

30

1327650C1

GROMMET

- flood lamp, right-hand

1шт.

30

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

1шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 3-1/2 inch, order R43250, Serial Range: cut-length

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 7 inch, order R43250, Serial Range: cut-length

2шт.

34

NSS

NOT SOLD SEPARAT

CONDUIT - harness, 9 inch, order R43250, Serial Range: cut-length

2шт.

35

1283289C1

ANGLE

BRACKET - mounting, outdoor flood lamp

1шт.

42

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list figure 4-38

1шт.

43

1979628C1

LARGE PLATE

PLATE - dome lamp

1шт.

44

1983386C1

HARNESS

- dome lamp adapter

1шт.

45

115400A1

HARNESS

- adapter, wiper motor

1шт.

R43250

CONDUIT

- bulk, 50 foot roll

1шт.
