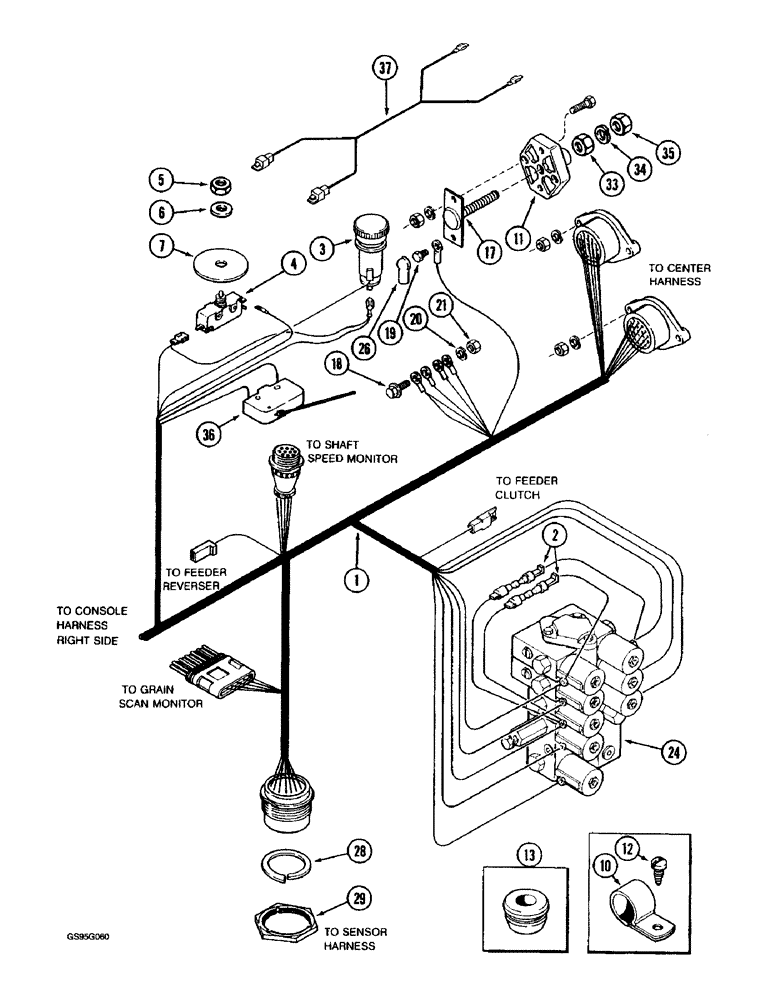

Запчасти Case IH 1670 (4-10) - CONSOLE HARNESS, LEFT HAND SIDE (06) - ELECTRICAL

1

1345237C1

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE - console harness, non-locking, 2-31/64 inch long

2шт.

3

245576C1

LIGHTER, CIGARETTE

LIGHTER - cigarette

1шт.

3

378781R1

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter

1шт.

4

633643R91

SWITCH

- parking brake warning lamp

1шт.

5

A39888

NUT

- 3/8-32, hex, special, (Replaces nut 68107H)

1шт.

6

166817C1

WASHER

- lamp switch

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch, if used

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch, if used

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, console harness, front

1шт.

11

468647C1

BLOCK ASSY.

BLOCK - junction

1шт.

12

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch (Replaces bolt 27128R1)

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

17

1964561C1

BAR

- junction block buss

1шт.

18

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch (Replaces bolt 68530C1)

2шт.

19

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list figures 8-30 and 8-32

1шт.

26

399470R1

BOOT

- cable

1шт.

28

490691C1

LOCK WASHER,#18 Shell

- lock, harness connector

1шт.

29

490692C1

LOCK NUT,#18 Shell

- hex, harness connector

1шт.

33

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

1310827C2

SWITCH

- third gear lockout (Replaces switch 1310827C1)

1шт.

37

1979451C1

HARNESS

- brake lamp

1шт.
