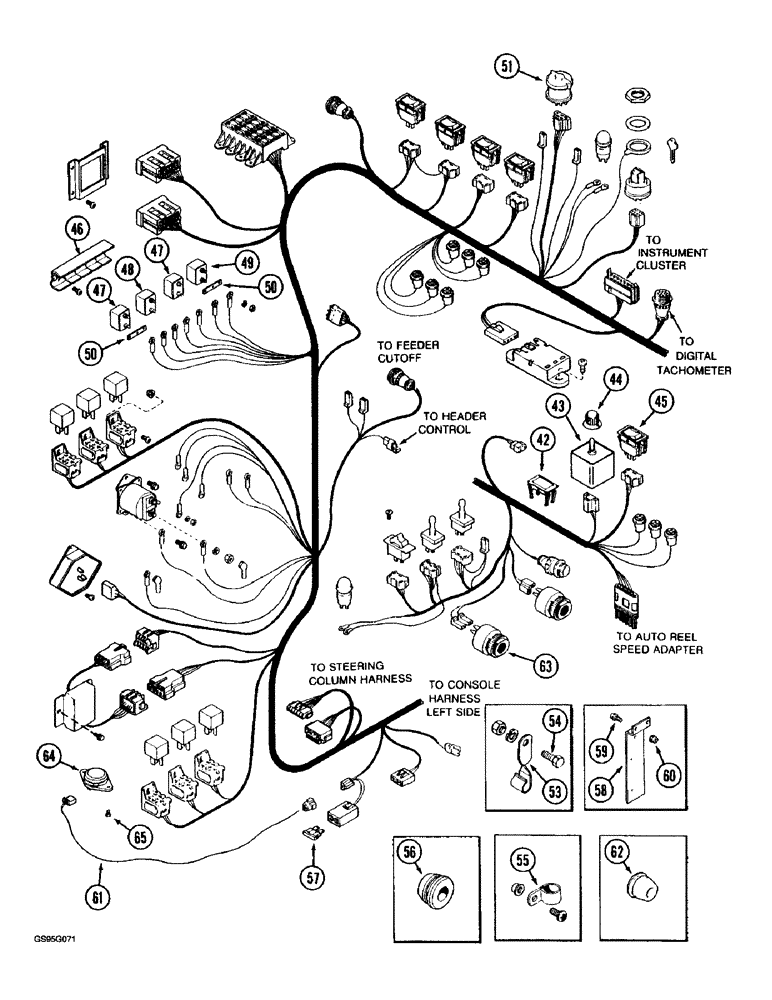

Запчасти Case IH 1670 (4-08) - CONSOLE HARNESS, RIGHT HAND SIDE, (CONT) (06) - ELECTRICAL

42

245334C1

PLUG

- panel switch cover, continued from 4-06

1шт.

43

245653C2

SWITCH

- reel speed control, manual

1шт.

44

1345235C1

BUTTON

KNOB - control (Replaces knob 1301036C1)

1шт.

45

245509C1

SWITCH

- reel, fore and aft (if equipped)

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklamp circuit, 30 ampere

2шт.

48

245762C1

CIRCUIT-BREAKER,15A

BREAKER - rotor circuit, 15 ampere

1шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab circuit, 20 ampere

1шт.

50

245861C1

BAR

- breaker bus

2шт.

51

107200C2

LIGHT SWITCH

SWITCH - headlamp

1шт.

53

363660R1

CLIP

CLAMP - console harness, twisted

1шт.

54

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

55

299277C91

CLIP

CLAMP - console harness

2шт.

56

92065C1

GROMMET

- rubber, console harness

1шт.

57

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

1шт.

58

1347059C1

SUPPORT

- seat relay

1шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

61

1345209C1

HARNESS

- seat switch

1шт.

62

195804C1

GROMMET

- 1/2 inch

1шт.

63

1983568C1

BUZZER

ALARM - grain tank level

1шт.

64

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

65

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch

2шт.
